Liquid Nitrogen Tunnel Freezer Introduction

A liquid nitrogen tunnel freezer, also known as a cryogenic tunnel freezer or nitrogen freezing tunnel, is an advanced freezing system designed for rapid and continuous freezing of food products.

By using ultra-low temperature liquid nitrogen (LN₂) or LCO₂ as the cooling medium, this tunnel freezer achieves extremely fast heat transfer, minimizing dehydration and preserving original food quality.

Liquid nitrogen tunnel freezers are widely used in industrial food processing plants where high product quality, fast freezing speed, and flexible production capacity are required.

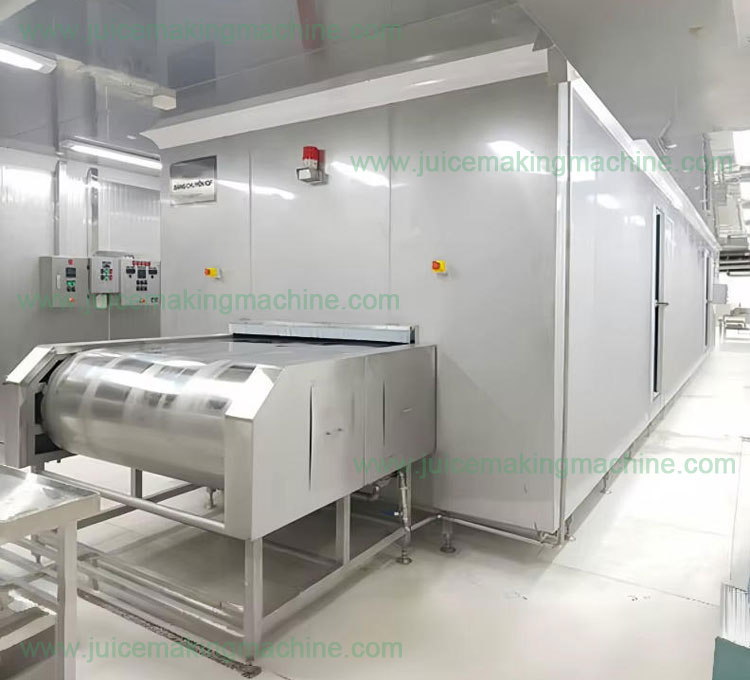

Liquid nitrogen tunnel freezer

Request a Customized Solution!

How Does a Liquid Nitrogen Tunnel Freezer Work?

In a liquid nitrogen tunnel freezer, food products are conveyed continuously through an insulated tunnel on a stainless steel mesh belt.

• Liquid nitrogen is sprayed directly onto the product surface.
• Nitrogen rapidly evaporates at extremely low temperatures.
• The evaporation process absorbs a large amount of heat.
• Products are frozen quickly and uniformly.

This cryogenic freezing method significantly reduces ice crystal formation, helping maintain texture, appearance, and nutritional value.

Request a Customized Solution!

Key Features of Liquid Nitrogen Tunnel Freezer

Ultra-fast freezing speed compared with mechanical freezing systems

The liquid nitrogen tunnel freezer uses direct contact between cryogenic nitrogen vapor and the product surface, allowing freezing to begin instantly. Compared with conventional mechanical tunnel freezers, this significantly shortens freezing time, improves throughput, and reduces the required tunnel length for the same output capacity. This is particularly beneficial for factories facing space limitations or needing fast capacity expansion.

Uniform freezing with minimal product dehydration

Liquid nitrogen is evenly distributed throughout the tunnel, creating a stable low-temperature environment around each product. This ensures consistent freezing across the entire product surface while minimizing moisture evaporation. As a result, product weight loss is reduced, surface cracking is avoided, and final product appearance and texture remain stable, which is critical for quality-sensitive frozen foods.

Flexible capacity for different production requirements

Freezing capacity can be adjusted by controlling conveyor speed, tunnel length, and nitrogen injection volume. This allows the same system to handle multiple product types or varying production volumes without major equipment modification. For processors with seasonal demand changes or diversified product lines, this flexibility helps reduce unnecessary equipment investment.

Send Inquiry Now!

Simple structure with reliable and stable operation

Unlike mechanical refrigeration systems that rely on compressors, refrigerant circuits, and complex control units, liquid nitrogen tunnel freezers feature a relatively simple mechanical design. Fewer mechanical components result in lower failure rates, reduced maintenance workload, and stable long-term operation, making the system suitable for continuous industrial use.

Easy integration into existing food processing lines

The tunnel freezer is designed for inline installation and can be easily connected with upstream and downstream equipment such as cutting, blanching, glazing, and packaging systems. Standard conveyor interfaces and modular tunnel sections simplify installation and reduce production downtime during line upgrades or expansions.

Suitable for continuous industrial production

The system supports continuous product flow with consistent freezing performance throughout long production cycles. Stable operating conditions and precise nitrogen control ensure repeatable freezing results, meeting the requirements of industrial food processors who prioritize production stability, product consistency, and predictable operating performance.

Technical Data

Applications

Liquid nitrogen tunnel freezers are suitable for freezing a wide range of food products, including:

Request a Customized Solution!

Liquid Nitrogen Tunnel Freezer vs Mechanical Tunnel Freezer

Compared with conventional air blast or mechanical tunnel freezers, liquid nitrogen tunnel freezers offer:

• Much faster freezing time.
• Higher product quality preservation.
• Lower initial equipment complexity.
• No need for large refrigeration systems.

They are especially suitable for high-value food products, small to medium production volumes, and frequent product changes.

Why Choose Our Liquid Nitrogen Tunnel Freezer?

• Professional manufacturer with experience in food processing equipment.
• Customized tunnel length and belt width available.
• Hygienic stainless steel construction compliant with food standards.
• Stable performance with low maintenance requirements.
• Complete technical support and solution design.

We provide complete liquid nitrogen freezing solutions based on your product type, capacity, and production layout. Customers can customize liquid nitrogen tunnel freezer according to their real needs.

If you are looking for a reliable liquid nitrogen tunnel freezer manufacturer, please contact us for detailed technical information and a customized quotation.

Send us your product details and freezing capacity requirements to receive a tailored solution.

When to Choose a Liquid Nitrogen Tunnel Freezer

A liquid nitrogen tunnel freezer is not intended to replace all mechanical freezing systems. It is best selected when specific production conditions or product requirements make conventional freezing methods less suitable.

You should consider a liquid nitrogen tunnel freezer in the following situations:

• When freezing speed is critical to product quality

For products that are sensitive to ice crystal formation, rapid freezing is essential. Liquid nitrogen freezing significantly reduces freezing time, helping maintain cell structure, texture, and appearance. This makes it suitable for high-value products where quality preservation is a primary concern.

• When production volume is moderate and flexibility is required

Liquid nitrogen tunnel freezers are well suited for small to medium production capacities, especially in facilities processing multiple products or frequently changing production schedules. The system can adapt quickly without complex adjustments, making it ideal for flexible manufacturing environments.

• When factory space is limited

Because of the extremely fast freezing rate, liquid nitrogen tunnel freezers typically require a shorter tunnel length compared with mechanical systems of the same capacity. This makes them a practical choice for plants with limited available floor space or for retrofit projects.

• When fast installation and commissioning are required

Liquid nitrogen tunnel freezers do not rely on large refrigeration units, compressors, or complex piping systems. This allows faster installation and shorter commissioning time, enabling new production lines to start operation quickly.

• When minimizing initial equipment complexity is a priority

For processors who prefer a simpler system structure with fewer mechanical components, liquid nitrogen tunnel freezers offer a reliable solution. Reduced mechanical complexity often leads to lower maintenance demands and more predictable operational performance.

• When product value justifies cryogenic operating cost

Although liquid nitrogen involves ongoing consumption costs, it is often economically justified for premium or export-oriented food products. In such cases, improved product quality, reduced weight loss, and higher market value can offset the higher operating expense.

For processors focused on large-scale continuous production and long-term operating cost control, mechanical tunnel freezers such as impingement freezer or air blast systems may be more suitable.
