Spiral Freezer
What is a Spiral Freezer?
A spiral freezer is a highly efficient freezing system widely used in the food processing industry. Unlike tunnel freezers, a spiral freezer uses a continuous spiral conveyor belt that maximizes freezing capacity in a compact space. This design helps achieve Individual Quick Freezing (IQF) while reducing floor space requirements, making it ideal for large-scale food manufacturers.
The spiral freezer is an energy-efficient quick freezing equipment with a compact structure, wide application range, small footprint, and high freezing capacity. It is widely used for freezing seafood, bakery products, meat, dairy products, and prepared foods. AGICO offers high quality spiral freezer with factory price, if your space isn't so large, spiral freezer is your reliable choice. The AGICO spiral freezer can be designed and manufactured according to customer requirements, with a freezing capacity ranging from 100kg/h to 3000kg/h.
Send Inquiry Now!
Tunnel Freezer vs. Spiral Freezer
In addition to tunnel freezers, many food processors also consider the spiral freezer.
-
Tunnel Freezer: Best for long products (fish fillets, meat cuts, bakery items, vegetables). Continuous straight-line freezing.
-
Spiral Freezer: Compact design, ideal for limited space; products move through a spiral conveyor, offering long retention time for thorough freezing.
-
Combined Solutions: Depending on production needs, AGICO can provide both tunnel freezer and spiral freezer solutions to meet different freezing requirements.
Tunnel type freezer
Spiral type freezer
Advantages of AGICO Tunnel Freezer for Sale
-
Compact Design, Space Saving
Compared with a tunnel freezer, the spiral freezer requires about 40% less floor space while maintaining high production capacity.
-
Uniform Freezing for Product Quality
The IQF spiral freezer ensures consistent airflow and stable temperature, preserving the quality, texture, and appearance of frozen products. AGICO also provides customized designs based on your production requirements.
-
Energy-Saving Operation
Equipped with an automatic lubrication system that reduces oil consumption by 20%, high-efficiency fans that minimize power usage, and a stainless-steel evaporator that improves heat transfer efficiency.
-
Safe and Reliable Performance
Designed with advanced European technology, the spiral freezer integrates mechanical and electronic double protection, ensuring reliable and secure operation.
-
Easy Operation & Maintenance
The freezer is user-friendly, requiring only simple training for operators. Cleaning and daily maintenance are convenient and time-saving.
-
Hygienic Design
Built with a tilted, fully-welded base for faster drainage, larger internal space, and easier cleaning. The stainless-steel construction meets the strictest food hygiene standards.
-
Flexible Applications
Suitable for freezing a wide range of foods, including poultry, seafood, bakery items, meat products, fruits, and ready-to-eat meals.

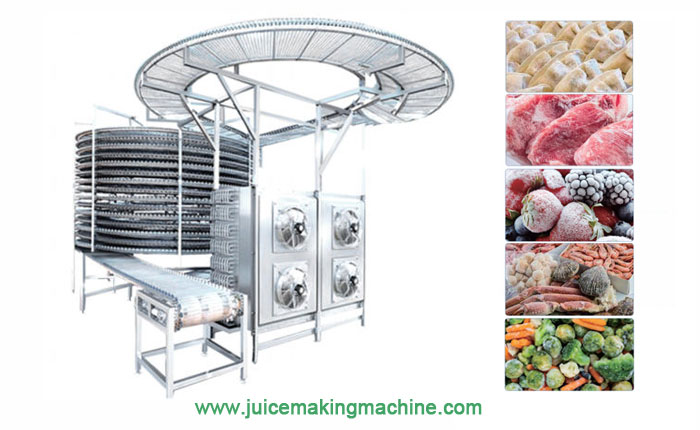

Spiral freezer new design
Spiral freezer is freezing food

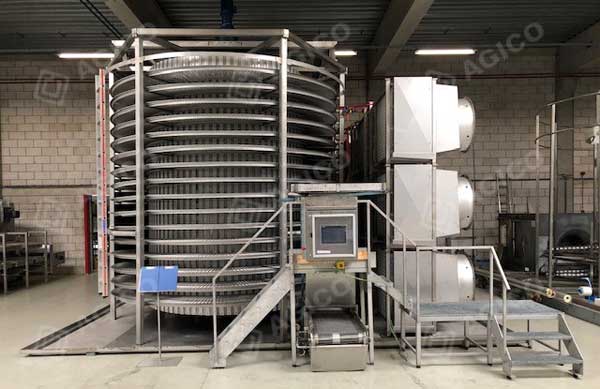

Spiral freezer for sale

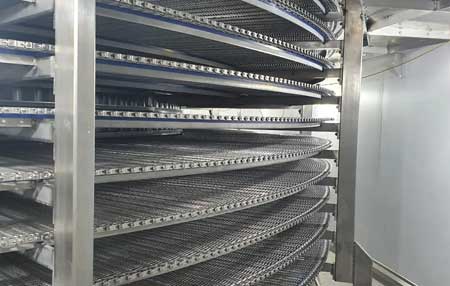

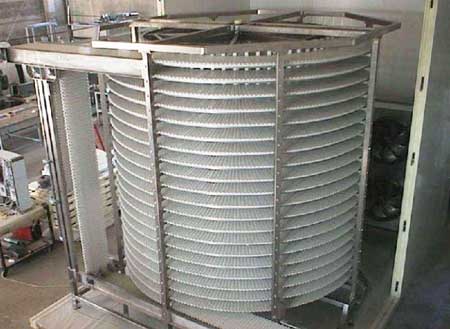

Spiral freezer construction

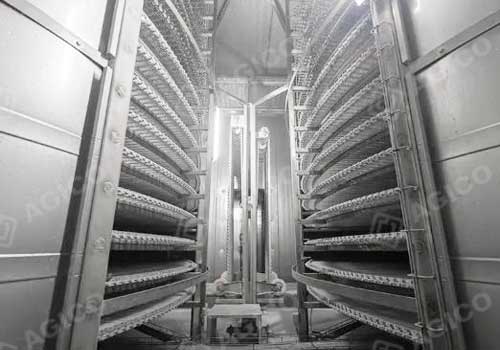

Spiral freezer inside structure

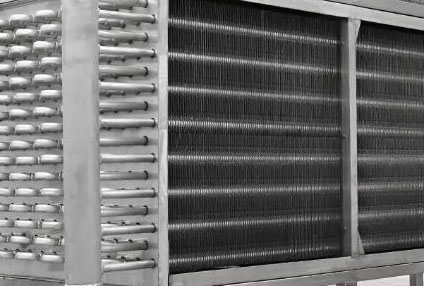

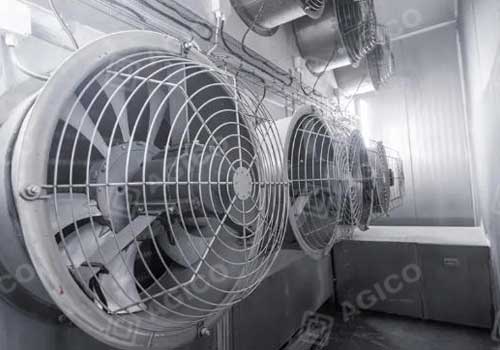

Spiral freezer cooling fan
Our certifications

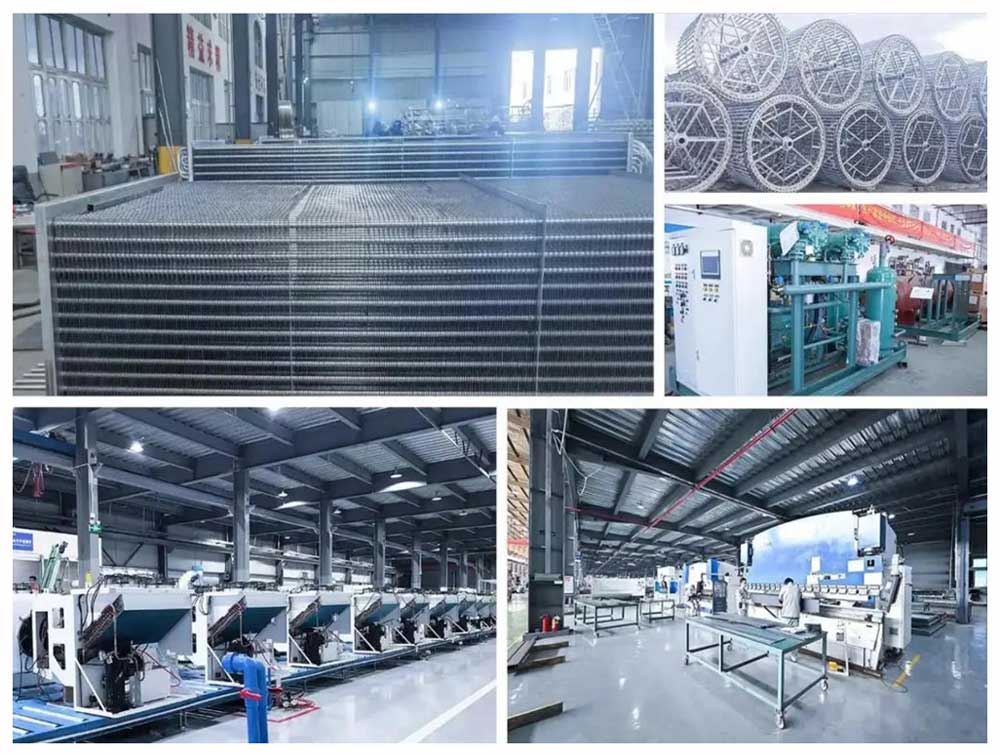

Our spiral freezer making factory
Get Spiral Freezer Today!
Applications of Spiral Freezer
-
Meat & Poultry Processing: Chicken, beef, pork, and other processed meats.
-
Seafood Industry: Shrimp, fish fillets, squid, and shellfish.
-
Bakery Products: Bread, cakes, pastries, and dough-based foods.
-
Fruits & Vegetables: Peas, corn, berries, and cut vegetables.
-
Ready-to-Eat Meals: Frozen dumplings, pizzas, noodles, and convenience food.
Spiral freezer for sale application
Get Spiral Freezer Today!
Why Choose AGICO Spiral Freezer?
-
20+ years of experience in food processing equipment, offer various models of tunnel freezer, spiral freezer, IQF freezer etc.
-
Customized design based on your specific freezing requirements.
-
Global installation and technical support, we offer perfect service from the beginning consult of spiral freezer to final installation.
-
Durable, hygienic, and energy-efficient solutions.
AGICO Spiral Freezer Specification
|
Model |
LSD1-500 |
LSD1-1000 |
LSD2-1000 |
LSD2-2000 |
LSD2-3000 |
|
Throughput(kg/h) |
500 |
1000 |
1000 |
2000 |
3000 |
|
External Dimension L×W×H(mm) |
6500x4440x3520 |
7000x5400x4200 |
12600x4440x3520 |
13800x5400x4200 |
16260x6000x4510 |
|
Feed Temperature(℃) |
+15 |
|
Discharge Temperature(℃) |
-18 |
|
Freezing Time(min) |
20–60 |
|
Cryogen |
R507/R404 |
AGICO Spiral Freezer Main Components

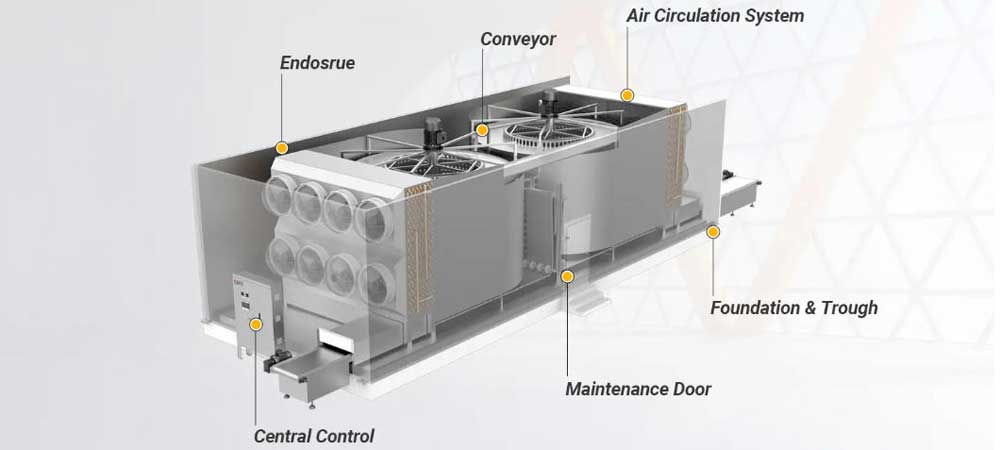

AGICO spiral freezer main components

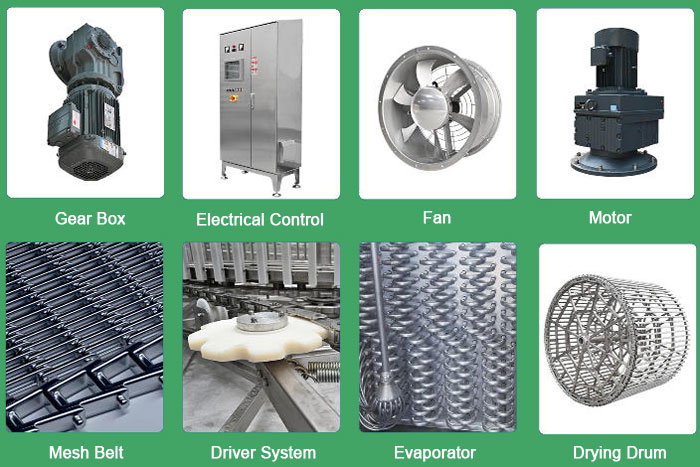

Spiral freezer components

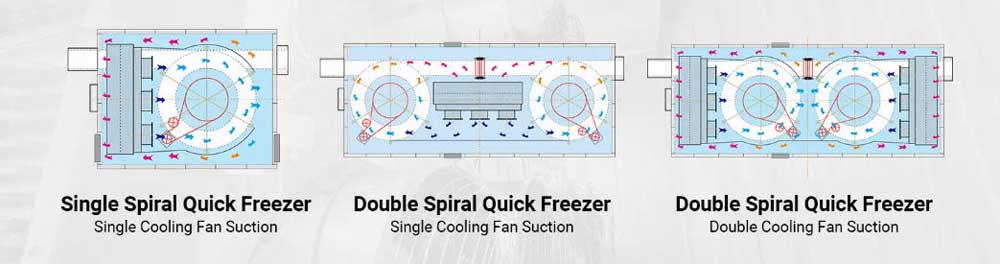

Different models of AGICO spiral freezer
Details of AGICO Spiral Freezer
Stainless Steel Conveyor Belt
The conveyor belt is made of food-grade SUS304 spiral mesh belt with a flat surface to ensure hygiene standards. Protective edges are installed on both sides of the belt to prevent products from falling off during operation.
Get Tunnel Freezer Price Now!

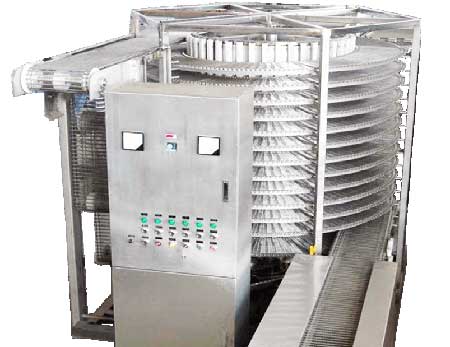

Electrical Control Box
Made of 304 stainless steel, the electrical control box allows conveyor belt speed to be controlled by a frequency converter, enabling flexible adjustment of freezing time. The outer shell is made of high-quality double-sided stainless steel panels, with polyurethane insulation inside.
Get Spiral Freezer Price Now!

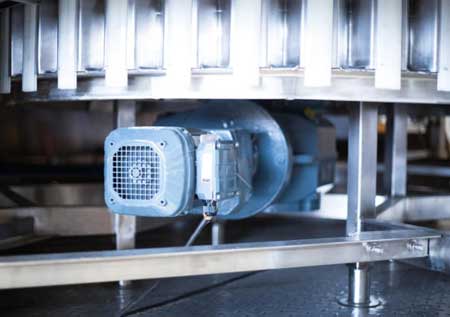

High-Efficiency Motor
Equipped with axial flow fans and stainless-steel cylinders, the motor features rust-proof aluminum hot-dip galvanization, excellent low-temperature resistance, moisture-proof and waterproof properties. It is highly efficient, energy-saving, environmentally friendly, quiet, and stable in operation.
Get Spiral Freezer Price Now!
Evaporator
Constructed with industrial-grade anti-rust aluminum alloy material, the evaporator adopts a dense tubing layout to achieve high heat transfer efficiency. This design improves heat exchange, extends the defrosting interval, and ensures energy-saving performance. The supporting frames, air deflector panels, and defrost water pipes are all made of stainless steel.
Get Spiral Freezer Price Now!
Stainless Steel Components
All friction parts between the conveyor belt and guide rails are made of ultra-high molecular weight polyethylene (UHMWPE), ensuring more reliable contact and separation between the drum and belt, thus guaranteeing product safety during freezing.
Get Spiral Freezer Price Now!
Spiral Freezer for Sale – Your Reliable Freezing Solution
If you are looking for a spiral freezer for sale, choosing the right supplier is crucial. A reliable IQF spiral freezer not only improves freezing efficiency but also ensures long-term stability for continuous operation. With customizable designs, energy-saving systems, and global after-sales service, our spiral freezers are trusted by food processors worldwide.
Whether you need a compact freezer for limited space or a large-capacity IQF spiral freezer for industrial production, we provide one-stop solutions tailored to your needs.
Contact us today for a free quotation on spiral freezer for sale and upgrade your food processing line with advanced IQF technology!
