Mango Pulp Processing Plant

What is Mango Pulp Processing Plant?

During the production of the fruit processing line, the mango processing machine is one of the most important fruit processing machines. Mangoes can be processed into mango juice and mango pulp. Thus, in this case, the mango pulp processing plant and mango juice production line are becoming more and more popular.

The mango pulp processing plant is a turnkey solution. It is designed to convert fresh mangoes into natural mango pulp or concentrate pulp. A mango pulp processing plant is an essential solution for fruit processing factories.

Mango Pulp Processing Plant Procedures

Raw Mango: Prepare ripe mangoes.
↓

Washing: To wash the dirt off the mangoes with our washing machine for fruits and vegetables.
↓

Peeling & Destoning: This procedure can be completed with a single peeling and destoning machine to remove the mango skin and stones.
↓

Pulping: This is the most important procedure, it can influence the final yield of mango pulp. Through the mango pulp machine, mango pulp can be separated from the mango skin and stone.
↓

Refining: After making mango pulp, refining it can make sure the quality and fineness of the mango pulp. It can make the mango pulp more stable.
↓

Deaeration: The function of deaeration is to remove air (especially dissolved oxygen) from the mgngo pulp, which can ensure bright natural mango color.
↓

Pasteurization: The function of pasteurization is to kill microorganisms through heating, ensuring mango pulp safety and extending its shelf life.
↓

Aseptic / Hot Filling: If you want to export your mango pulp, aseptic filling is necessary in large industries of mango pulp processing plant. This is the standard of worldwide. For small or medium mango pulp production line, hot filling is enough.

Mango pulp processing plant procedures

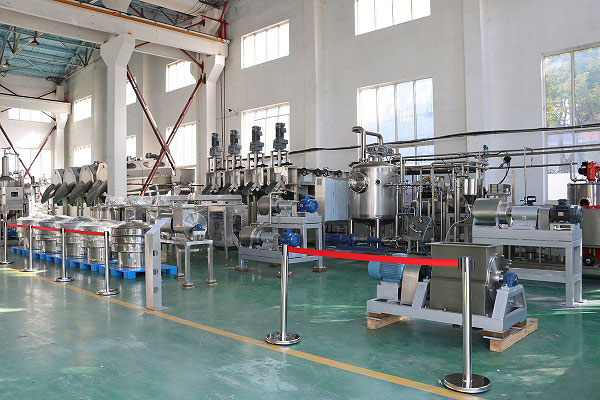

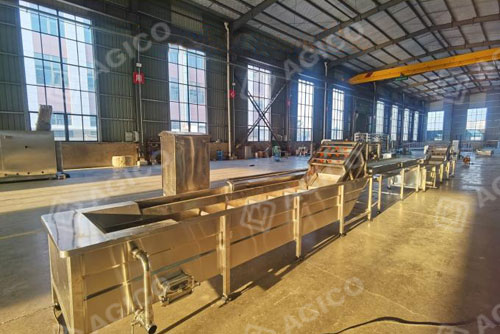

AGICO Mango Pulp Processing Plant

Our mango pulp processing plant contains the whole core mango pulp making machine, through the process of washing, peeling destoning, pulping, refining, deaeration, pasteurization and filling, mangoes can be efficiently processed into mango pulp. We can ensure each procedure and each mango pulp making machine is carefully engineered. And our final mango pulp has the natural color, flavor and the optimal brix levels. We have advanced refining technology, which can improve smoothness and consistency of mango pulp. Our mango pulp processing Line is specially designed for industrial-scale production, ensuring high yield, low oxidation, and aseptic packaging.



AGICO mango pulp processing plant is not only suitable for large scale industrial fruit processing, but also for medium or small scale factories. Customers can customize mango pulp processing plant with various production capacities range from 500kg/h to 20t/h. For large scale industrial mango pulp processing plant, our mango pulp processing plant is fully according with the aseptic export standard. It is usually equipped with an aseptic filling system with 220L bag-in-drum packaging. Mango pulp can be stored and transported for a long shelf life. Meanwhile, for our mango juice production line, we usually adopt fruit juice filling machine for PET bottles or other shapes.


Compared with mango juice production line, our mango pulp processing plant is mainly focus on the previous parts. The final product of mango pulp processing plant is mango pulp, it usually no water is added, can be continuously used for the beverage, jam, yogurt and so on. While for the mango juice production line, it produces beverage that are based on mango pulp. After making mango pulp, mixing water, syrup, essence etc. into the pulp, with the help of homogenization degassing and sterilization to make the mango juice is suitable for drinking.

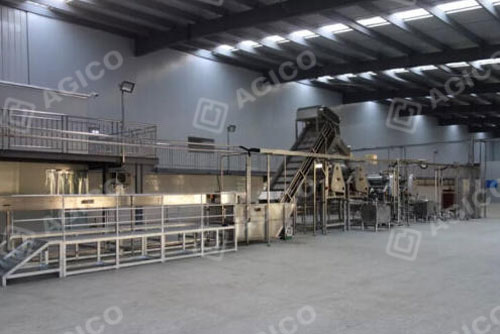

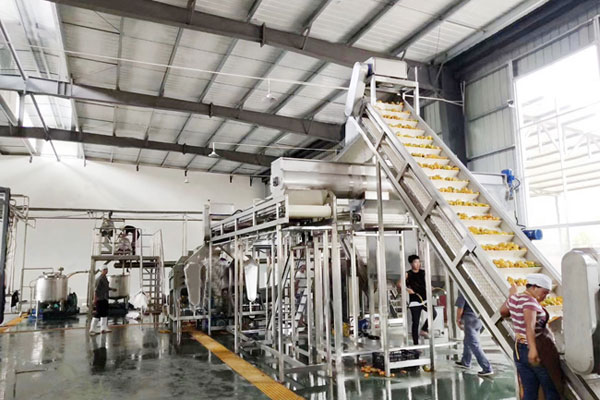

AGICO mango pulp production line project

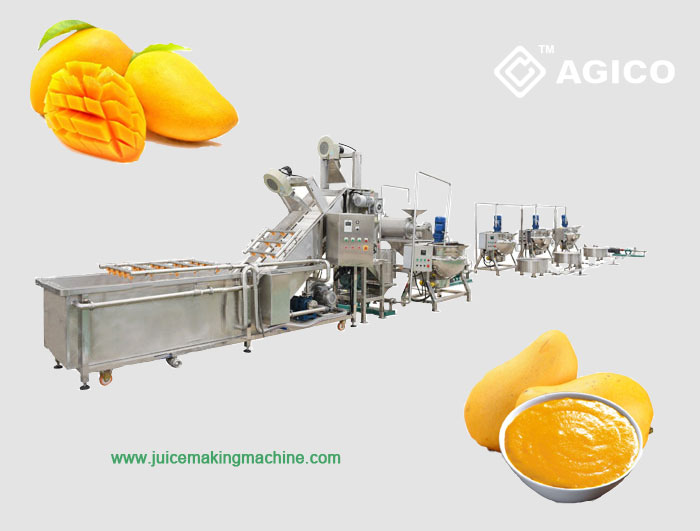

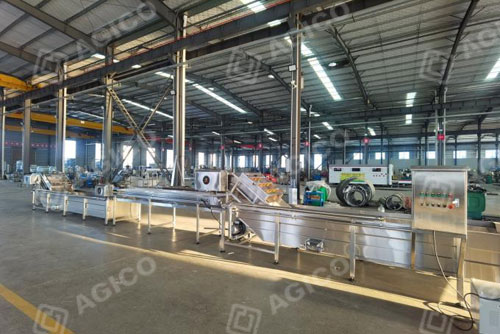

Mango pulp processing plant 1-3t/h

Mango pulp processing machinery

Main Mango Pulp Making Machine

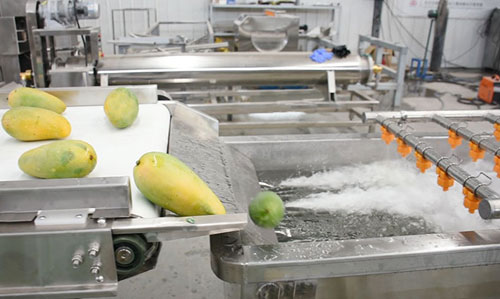

Mango Washing Machine

This is the beginning of the magno pulp processing plant, after selecting ripe mangoes, to wash them with the fruit and vegetable washing machine is necessary, especially in the large scale mango pulp production lines. Our mango washing machine can not only wash mango, but also can wash kinds of other fruits and vegetables.

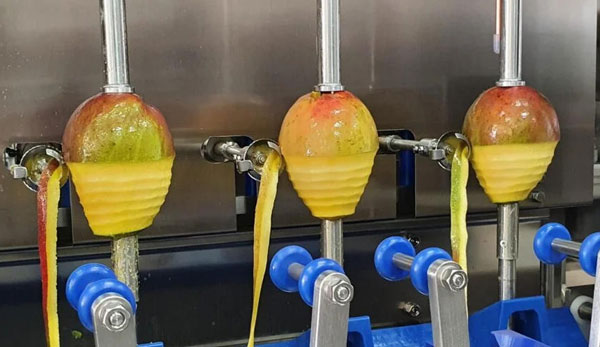

Mango Peeling and Destoning Machine

As it's name replies, mango peeling and destoning machine is used to remove the mango skin and stones. For large scale mango pulp processing plant, a mango peeling and destoning machine is necessary. While for small mango pulp production line, the mango destoning and pulping process can be integrated into one machine.

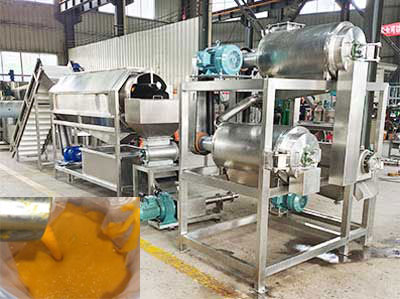

Mango Pulper

The mango pulping machine, also known as a mango pulper or mango pulp making machine. It is one of the core mango pulp making machines among the mango pulp processing plant. Our mango pulping machine adopts 304 stainless steel, and has high efficience. Generally speaking, with one mango pulper, you can get coarse mango pulp, so mango pulper can effect the yield of mango pulp. Please choose the most suitable one according to your requirements. Sometimes, one mango pulper can simutaneously finish the peeling and destoning work.

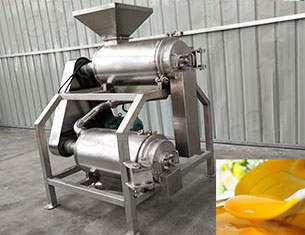

Fruit Refiner

With the fruit refiner, the mango pulp can be further refined. After getting the mango pulp made by fruit pulper, the fruit refiner can remove coarse fibers through a finer mesh screen, and to adjust the mesh size can get different pulp grades. With the help of fruit refiner, the mango pulp is smoother and meet the export standard about magno pulp processing plant.

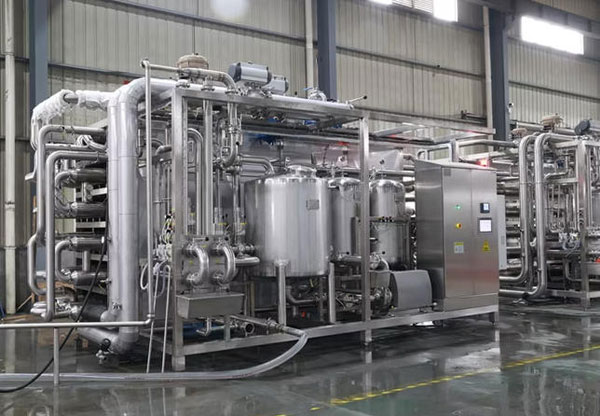

Vacuum Deaerator

The function of deaeration is to remove the air from the fruit pulp under a negative pressure environment, thus the oxygen content can be reduced. Deaeration can lower the dissolved oxygen content, reduce oxidation reactions, keep the bright color of mango pulp. With the help of vacuum deaerator, mango pulp is more suitable for aseptic packaging.

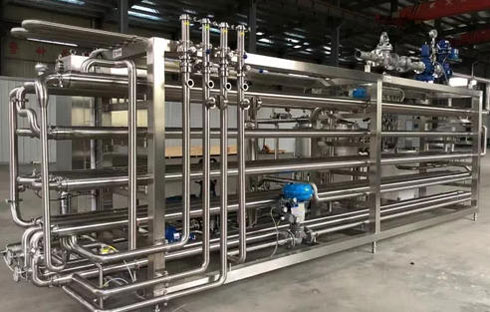

Pasteurizer

According to different technologies, pasteurization is usually used to kill microorganisms by heating to 85–95°C, which ensures mango pulp safety and extends the shelf life. Through pasteurization, the sterilized mango pulp can be kept for about several weeks, the aseptic packaged mango pulp can even be stored for 12 to 24 months at room temperature. So pasteurization is essential in the mango pulp processing plant. Generally speaking, there are tubular pasteurizer and plate pasteurizer, tubular pasteurizer is more common in the large mango pulp processing plant, you can choose the suitable one according to your needs.

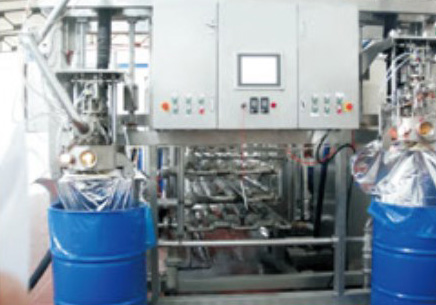

Aseptic Filling Machine

Aseptic filling or packaging refers to sterilized mango pulp is filled into aseptic packaging materials in an aseptic environment. The mango pulp can be stored for 12-24 months at room temperature without refrigeration. It is suitable for long-distance transportation. The common packaging forms are 220L Bag-in-Drum and 1000L IBC Aseptic Bags. Aseptic filling is supplied to large beverage factories. Hot filling is filling directly at high temperatures, it has the features of lower costs, simple operation and is suitable for small and medium scale mango pulp processing plant. It is usually used for glass bottles, cans and small packaging barrels etc.
