Automatic Shrink Packaging Machine
About Heat Shrink Packaging Machine
During the production of fruit juice, one of the most important procedures is to package the final fruit juice. When finishing the process of filling juice into bottles with a juice filling machine, some enterprises need a heat shrink packaging machine to wrap the bottles, making the bottles in groups of nine or six each, just like what we see in the supermarket. Not only packaging the bottles, there are some other regular shaped products can be wrapped such as cans, boxes etc.
Send Inquiry Now!
Automatic heat shrink packaging machine is a continuous packaging equipment. It has high efficiency, and based on the heat-shrinking property of the packaging film, we offer high quality automatic heat shrink packaging machine for customers.

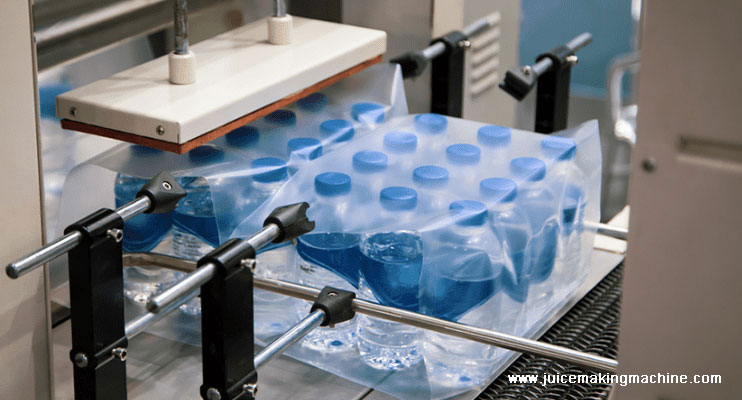

Our automatic heat shrink wrapping machine can
automatically arrange beverage bottles or other similar items , make them together, and then wrap them with shrink film. Finally, heat shrink wrap machine can heat the film to shrink and cool to set, forming the collective package. The packaged products have a regular and attractive appearance, and are easy to open.
Heat shrink wrapping packaging machine application
Send Inquiry Now!
Types of Heat Shrink Packaging Machine
There are many types of heat shrink wrapping or packing machines. Generally speaking, the heat shrink packaging machine is generally classified into L bar shrink wrap machine, linear shrink wrapping machines and one-piece shrink wrapping machines according to different packaging forms and the shape of the packaging machines. Here, we mainly introduce our linear shrink packing machine.

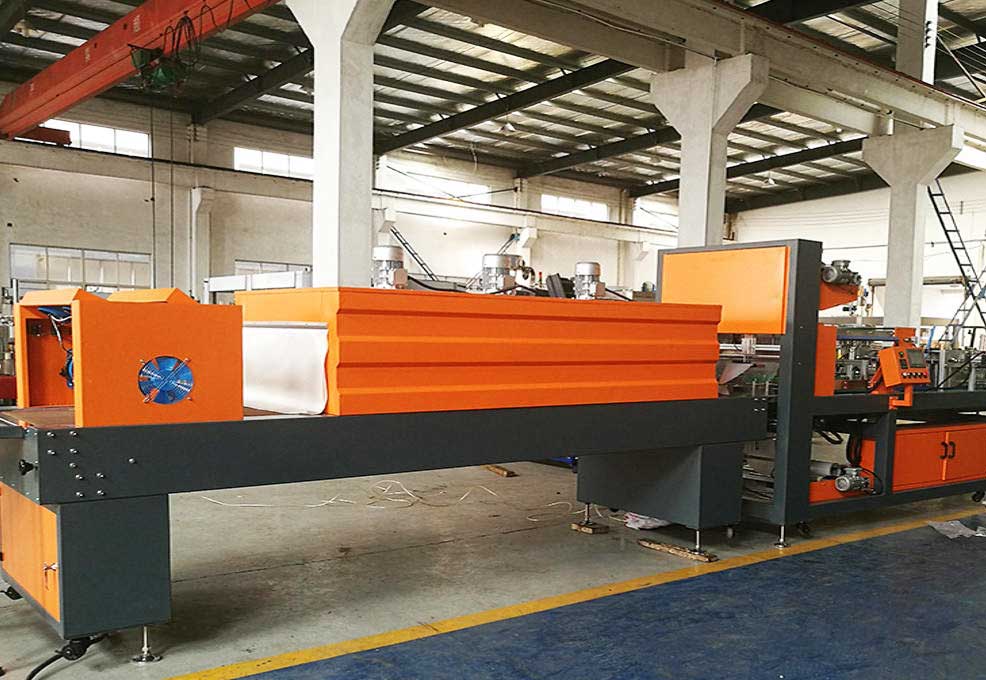

Small linear shrink packaging machine
Large linear heat shrink packaging machine
Linear Shrink Packaging Machine
There are mainly two types of linear heat shrink packaging machine in AGICO, one is large linear shrink packing machine, the other is small linear shrink packaging machine. Our linear heat shrink wrapping machines are available in two models: AGICO-15 and AGICO-20.
Large linear shrink packing machine
The small linear heat shrink wrapper (AGICO-15) is suitable for products with a maximum package size of 425 × 280 × 330 mm, with a steady output of 0–14 packs per minute. The overall machine dimensions are 9600 × 1200 × 2200 mm.
The large linear shrink wrapping machine (AGICO-20) is designed for products with a maximum package size of 425 × 280 × 330 mm, with a steady output of 0–19 packs per minute. The overall machine dimensions are 13800 × 1600 × 2200 mm.
According to the customer’s bottle shape and package dimensions, the linear heat shrink packaging machine can be customized to meet different production requirements.
Features and Advantages of AGICO Linear Shrink Packaging Machine
-
The linear shrink wrapping machine adopts an advanced heat sealing and cutting structure, ensuring firm sealing, neat edges, and excellent seam performance.
-
The sealing mechanism is driven by a cylinder with guide pillars at both ends, ensuring smooth and reliable film cutting and sealing.
-
The small linear shrink packing machine uses a flat plate conveying system, achieving stable product delivery without changing templates. It can adapt to various bottle shapes and is easy to operate. The large linear shrink packaging machine adopts a ribbed panel conveyor, preventing bottles from toppling even at high production speeds.
Send Inquiry Now!
Advanced heat sealing and cutting structure
Constant temperature heat shrink tunnel
-
Our linear shrink packaging machine is equipped with a PID temperature controller, providing accurate and energy-saving temperature control. The sealing and shrinking temperatures are automatically regulated and can be adjusted as needed.
-
The heat shrink tunnel features an advanced spiral air circulation structure and three-layer thermal insulation, providing high energy efficiency.
Send Inquiry Now!
-
The bottle feeding system of linear shrink packing machine uses imported high-speed fiber optic sensors for counting, ensuring precise and stable operation. An intelligent monitoring system is added—when bottles fall over accidentally, the heat shrink packaging machine will automatically detect the issue, stop conveying, and sound an alarm. Once the problem is cleared, simply press “Cancel Alarm” on the control panel to resume operation.
-
The touch screen control system of our linear shrink packaging machine allows for high-precision and intelligent motion control. All machine actions, alarms, and PLC statuses are displayed on the screen for safer and more reliable operation. AGICO linear shrink packing machine also supports single-step manual operation, making debugging and maintenance easier.
Linear Shrink Packaging Machine Details
Uniform key slot adjustment package for bottle sides
New design of large linear shrink packaging machine
Linear shrink packaging machine with lever conveyor
Delivery of film for linear shrink packing machine
Linear shrink packing machine details
Heat shrink wrapper pressing section can be adjusted up and down
Delivery of film for linear shrink packing machine
Bottle divider adjustment button of linear shrink packing machine
Chain conveyor gate of large linear shrink packaging machine
-
The linear shrink wrapping machine is equipped with an automatic alarm system to further enhance safety and reliability. The automatic control system enables automatic feeding, bottle sorting, film shrinking, and cooling, suitable for continuous long-term operation without stopping.
-
The heat shrink tunnel features an advanced spiral air circulation structure and three-layer thermal insulation, providing high energy efficiency.
-
The conveying height, feed direction, and machine dimensions of heat shrink packaging machine can all be customized according to customer requirements.
-
Trayless packaging design makes our linear shrink packaging machine easy to adjust for different bottle sizes and combinations, preventing bottles from slipping or toppling.
-
The large linear heat shrink wrapper uses a chain pusher system that smoothly guides bottles into the guard rails without scratching the bottle surface.
Working Process of Linear Shrink Packaging Machine
Product conveying → Product sorting → Film wrapping → Film unwinding → Bottle pressing
↓
Finished product output ← Cooling & shaping ← Heat shrinking ← Sealing & cutting ←
Large Linear Shrink Packaging Machine Technical Parameter
|
Model |
AG-MB-20 |
|
Packaging Specification |
2*3，3*4，3*5，4*6 |
|
Overall Dimensions |
L13140*W1100*H2150 mm |
|
Hear Shrink Furnace Size |
L4000*W100*H2000 mm |
|
Packaging Speed |
16-20pc/m |
|
Sealing and Cutting Time |
0.5-1.2s |
|
Sealing and Cutting Temperature |
160-200℃ |
|
Voltage |
380V/50HZ |
|
Power |
28kw |
|
Air Pressure |
0.6-0.8Mpa |
|
Air Flow Rate |
0.5m³/Min |
|
Weight |
1500kg |
Small Linear Shrink Packaging Machine Technical Parameter
|
Model |
AG-MB-15 |
|
Packaging Specification |
2*3，3*4，3*5，4*6 |
|
Overall Dimensions |
L9841*W1000*H2000 mm |
|
Hear Shrink Furnace Size |
L3700*W92*H2000 mm |
|
Packaging Speed |
9-15pc/m |
|
Sealing and Cutting Time |
0.5-1.5s |
|
Sealing and Cutting Temperature |
160-180℃ |
|
Voltage |
380V/50HZ |
|
Power |
23kw |
|
Air Pressure |
0.6-0.8Mpa |
|
Air Flow Rate |
0.3m³/Min |
|
Weight |
1200kg
|
