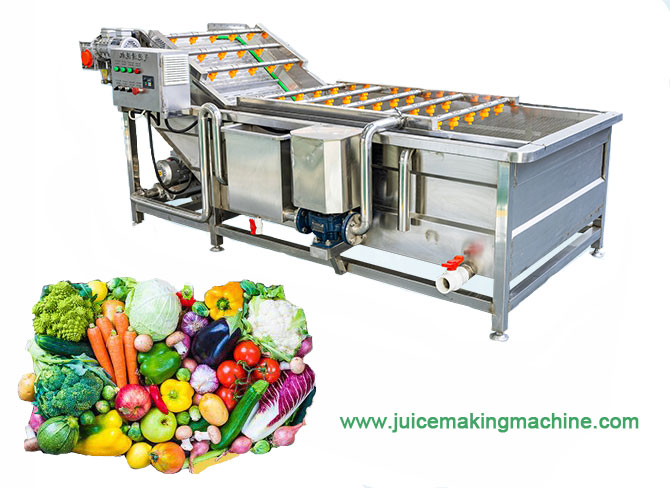

Air Bubble Washing Machine for Vegetable and Fruit
As we all know, it’s important to clean vegetables and fruits during the production of food processing, for the agricultural product wholesale markets and central kitchens, vegetable and fruit cleaning is also of great significance.
Almost all vegetable processing must go through the cleaning procedure. Therefore, vegetable cleaning machines are standard equipment and are used very frequently. Generally speaking, the cleaning process of air bubble washing machine for vegetables usually involves: soaking → bubble cleaning → lifting → spraying → secondary cleaning.
AGICO is a one-stop supplier specializing in various food machinery equipment and juice making machine, offering customization, direct supply from manufacturers, and quality assurance.
Environmentally friendly
AGICO air bubble washing machine is environmentally friendly and safe, it has features of low energy consumption, water conservation, and a bacterial clearance rate exceeding 99%.
Simple installation and operation
The installation of air bubble vegetable washer is simple and operation is easy, maintenance is convenient. Our air bubble washing machine has large processing capacity and the automation level is high.
High efficiency and water saving
AGICO air bubble washing machine is highly efficient, does not damage the vegetables, saves time, saves water, and is clean and hygienic.
Dual filtration system with easy maintenance design
AGICO air bubble washing machine equipped with double-layer filter screens, it can filter out impurities well. Besides, an optional overall lifting equipment is available for convenient cleaning and maintenance.
Advanced bubble rolling and spray cleaning technology
The air bubble washing machine from AGICO adopts bubble rolling and spraying technologies, it can clean vegetable and fruit to the greatest extent. The washing machine can be customized according to different processing requirements to meet the customers’ needs.
Food-grade sus304 stainless steel structure
This air bubble washing machine for vegetables and fruits adopts SUS304 stainless steel, which accords with the food safety standard.
Wide application
Our air bubble washing machine vegetable and fruit has a wide range of applications, with AGICO air bubble washing machine, it can wash leafy vegetables, carrots, blueberries, strawberries, eggplants, peppers, potatoes, cherries, lemons, etc.
Continuous operation for integrated processing lines
Our air bubble washing machine can work continuously and can be connected with cutting, blanching and cooling processes. It is suitable for various food processing lines.

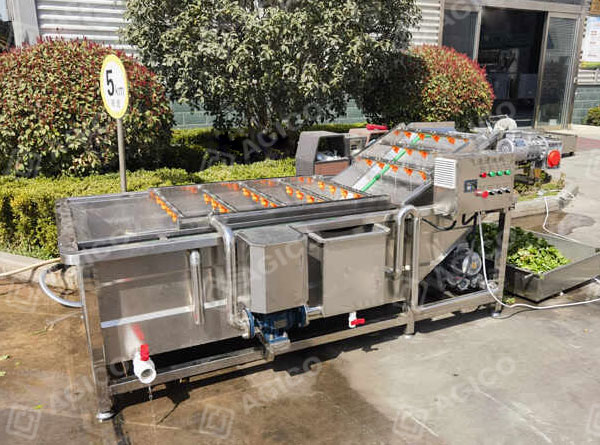

Front of AGICO air bubble washing machine

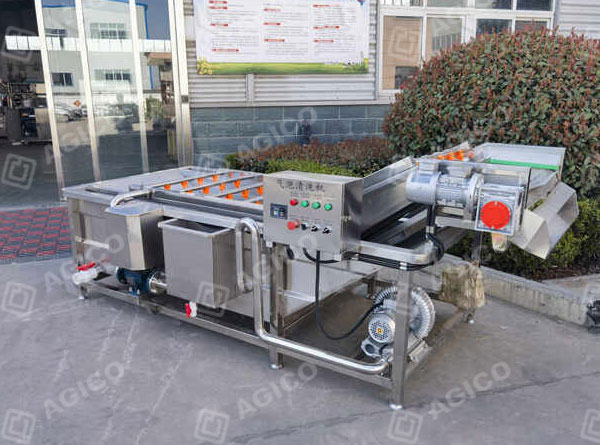

AGICO air bubble washing machine in factory

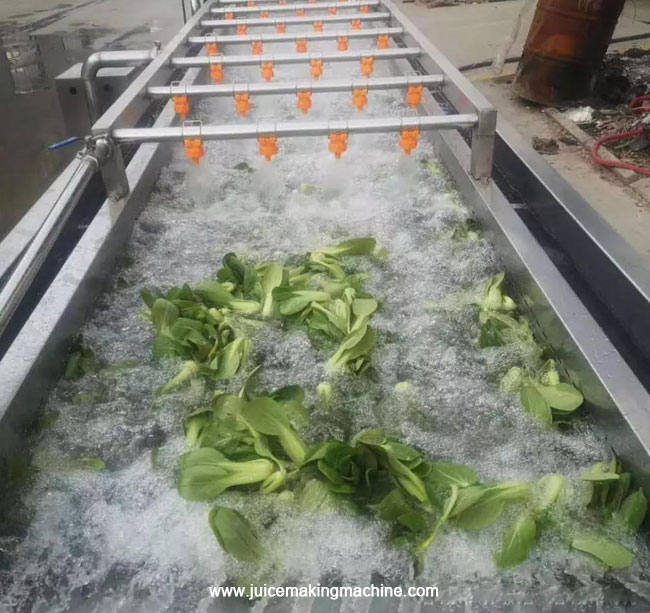

Air bubble washing machine with spraying system

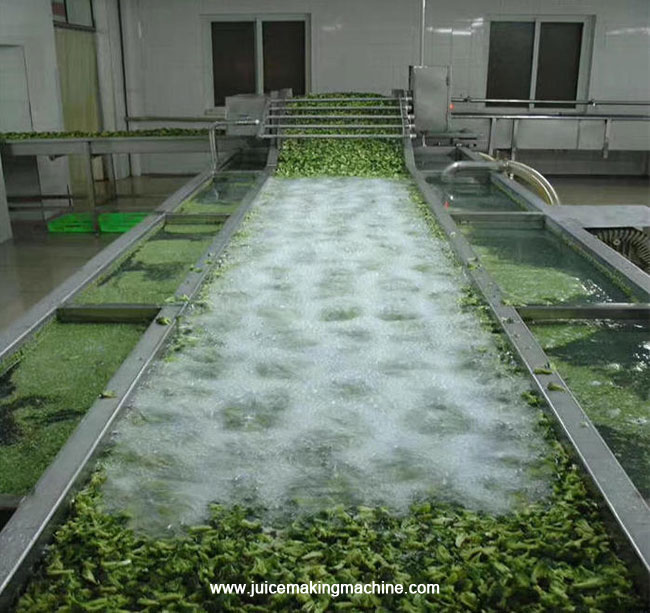

Air bubble washing machine without spraying system
What is a Vegetable Air Bubble Washer?
Air bubble washing machine is one of the most common vegetable and fruit washing machines. It is widely used for cleaning various fruits and vegetables, especially leafy and stem-type vegetables. Just as its name suggests, the air bubble vegetable washer generates continuous bubbles in water through a high-pressure pump. When the bubbles burst, they create shock waves and micro-flow forces, causing the vegetable and fruit to roll against each other, thus cleaning away the residues, mud, and microorganisms from the surface of vegetables and fruits. This air bubble washing machine for vegetables and fruits can efficiently and easily clean vegetables and fruits without causing damage, making it the best way to clean fruits and vegetables at present.
Sprinkler heads arranged at random
Stainless steel conveyor mesh
Air bubble washing machine spraying system
Electrical control box
Water pump and filter water tank
Motor and reduce
The AGICO air bubble washing machine for vegetables and fruits has high cleaning efficiency, simple operation, and is hygienic and safe. What’s more, AGICO vegetable and fruit air bubble washing machine combines the two cleaning methods of bubbles and sprays. It has a spray function on the upper part of the bubble washing machine, which can clean the vegetables and fruits in all directions and from multiple angles. We can also add ultrasonic and ozone generators according to customer needs.

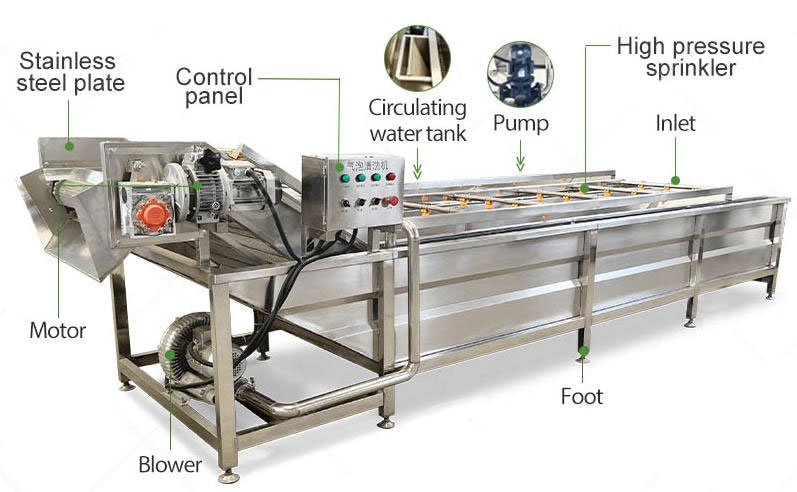

Air bubble washing machine structure
Air Bubble Vegetable Washer Working Principle
The working principle of the air bubble washing machine is that it is equipped with an air pump. Through the air blast blower, the air is continuously blown into the bottom of the water tank. Then using the water in the water tank of the washing machine to form a large number of uniform bubbles. The bubbles drive the water to flip, thereby causing the fruits and vegetables to continuously turn over and roll, and after cleaning, the conveying device will transport the fruits and vegetables out of the water tank.
During this process, the bubbles keep bursting, and the impact force generated by the bursting can separate the mud and impurities from the surface of the vegetables and fruits. Simultaneously, the circulating water formed by the high-pressure water pump precisely carries away the separated impurities.
Some advanced fruit and vegetable air bubble washing machines are equipped with a high-pressure spray system. The spray system can further rinse the fruits and vegetables, which improving the cleanliness without damaging the fruits and vegetables.
The width of the air bubble washing machine is generally determined by the width of the conveying device, usually ranging from 600mm to 1000mm, while the length of the air bubble washing machine is generally no less than 3000mm. Customers can customize the appropriate fruit and vegetable bubble washing machine according to their own needs.
Air bubble washing machine vegetable and fruit is the most popular washing machine at present, it is widely used for the pretreatment of vegetables and fruits. It is usually used in central kitchens, hotels, fruit and vegetable proccessing plants, juice processing plants and so on.
Leafy vegetables: lettuce, spinach, coriander, celery, romaine lettuce, baby spinach, cabbage, water spinach, amaranth, etc.
Vegetables: potatoes, carrots, sweet potatoes, taro, onions, garlic, green beans, onions, mushroom types, etc.
We have many years of experience on the production of food machinery and fruit processing machinery, we offer customization service, our air bubble washing machine can meet your requirements, if you need help about the washing machine for vegetables and fruits, please don’t hesitate to contact us, we will offer you the most suitable solution. Trust us and we are looking forward to contacting you!
