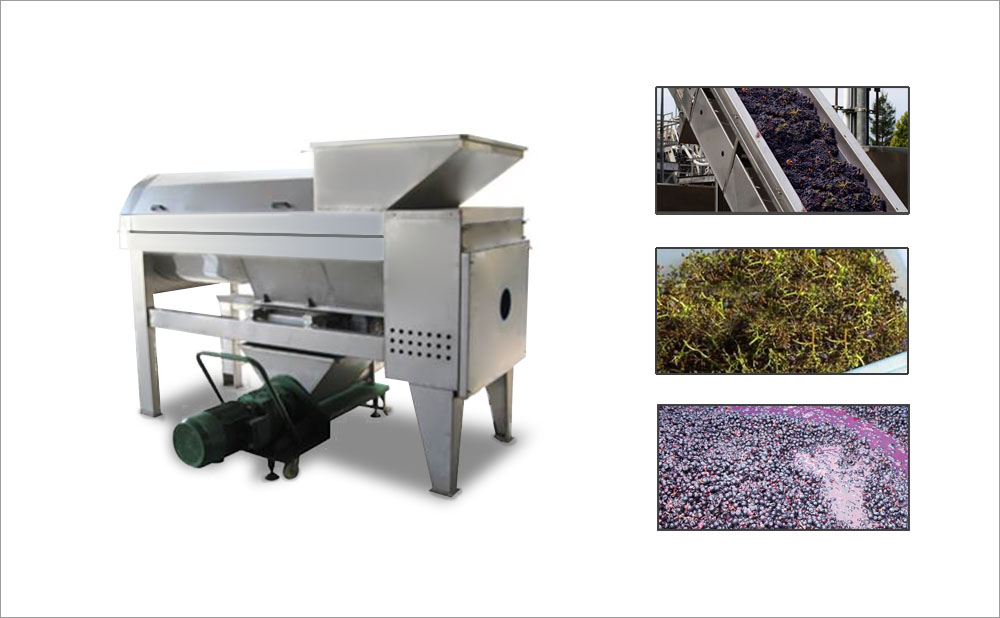

An uneven supply of grapes, stems entering the press, and excessive crushing can all create problems at the start of a grape juice processing line. A grape destemmer crusher separates berries from their stems and breaks the fruit before the next processing stage.
A grape destemmer crusher is mainly used to prepare grapes for juice processing or winemaking. It performs two main functions:
-
Destemming: Separates grape berries from their stems, reducing the amount of stem material entering subsequent fermentation.
-
Crushing: Gently breaks the berries to release juice while minimizing damage to the grape seeds.
For AGICO grape destemmer crusher, the crushing process generally means breaking the berries in preparation for fermentation or pressing, rather than grinding them into a puree. For different grape destemmer crusher models, the sequence of destemming and crushing, as well as the machine design are different. Some models also allow the crushing function to be bypassed for destemming only.
AGICO supplies individual fruit processing machines and complete production lines. For processors buying a standalone grape destemming machine, selection starts with the fruit: grape variety, harvest condition, hourly intake, and the equipment already installed downstream.
The machine prepares crushed grapes for further processing. It does not replace a juice press, filter, or pasteurizer. Need a destemmer crusher for your existing line? Let us know your setup.
How a Grape Destemmer Crusher Works

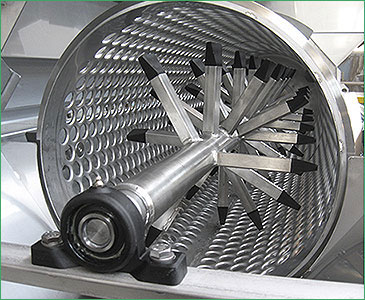

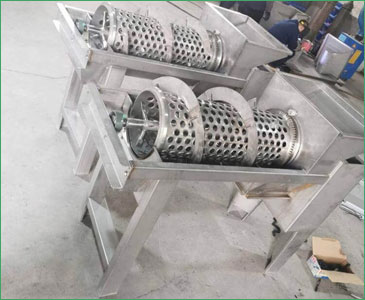

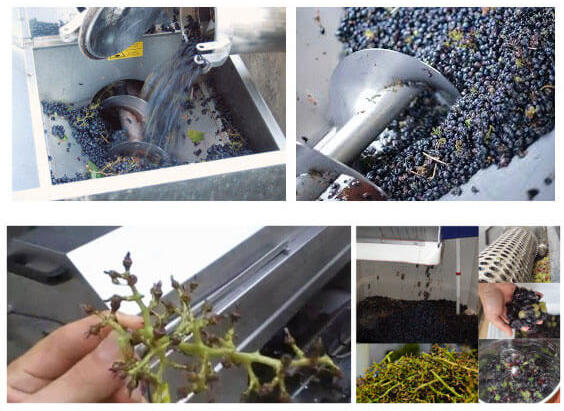

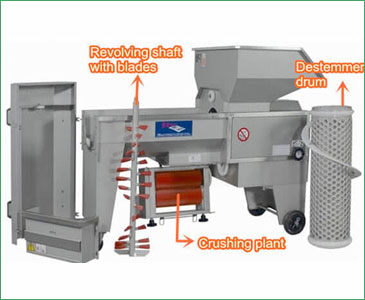

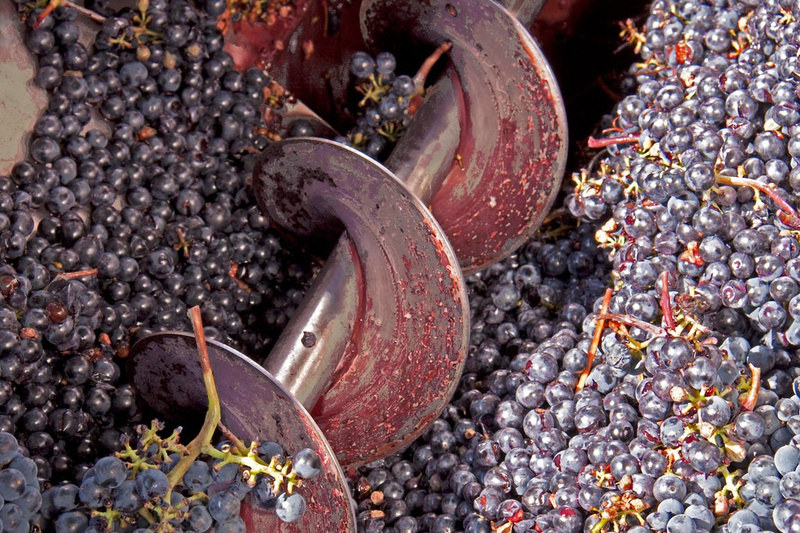

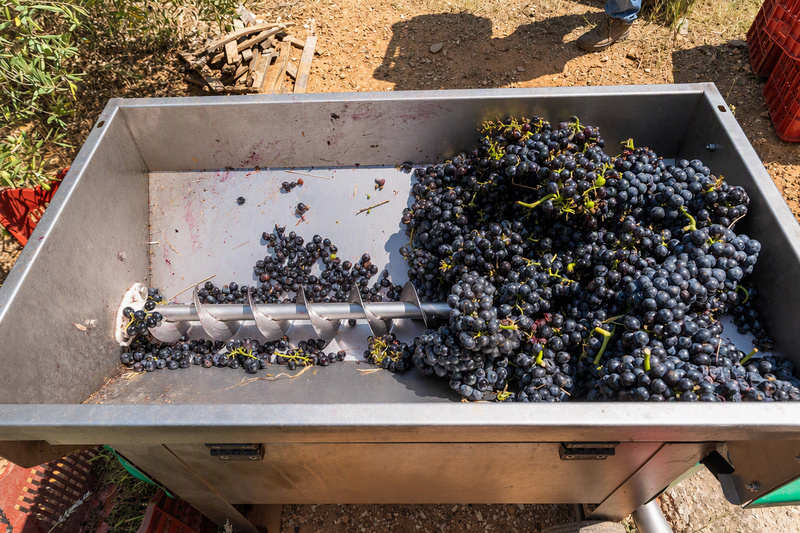

Grapes enter through the feed hopper and move into the destemming section. A rotating mechanism separates berries from the stems. The berries pass through the screen, while the separated stems leave through a dedicated outlet.
The fruit then enters the crushing section. Rollers break the berries to release juice and prepare the remaining material for processing. The objective is controlled crushing, with settings suited to the grapes being handled.
The discharge contains juice, pulp, skins, and seeds. Depending on the production arrangement, this mixture moves to a receiving vessel or transfers through a suitable pump.
For grape juice production, subsequent steps may include heating or enzyme treatment before pressing, depending on the required product and process. Destemming and crushing are established preparation stages in grape juice processing.
Features That Matter in Daily Production
01
Separate Stem Discharge
A dedicated stem outlet allows operators to collect removed stems separately from the fruit stream. Leave enough space beside the machine for bins or a discharge conveyor, particularly during peak harvest intake.
02
Controlled Fruit Preparation
Crushing should suit the grape variety and downstream process. Excessive crushing is not a substitute for effective pressing. During commissioning, check the discharged material and adjust the available settings to achieve the required berry breakage.
03
Matched Feeding and Discharge
The hopper, feeding system, crusher, and receiving equipment need to work at compatible rates. A machine with sufficient nominal capacity can still become a bottleneck if fruit arrives in sudden batches or the discharge arrangement cannot keep up.
04
Access for Cleaning
Grape skins and pulp can collect around screens, rollers, and transfer points. Access to these areas matters during every production shift. Review the opening arrangement and cleaning procedure before choosing a model, especially where frequent product changeovers are required.
Grape Destemmer Crusher Specifications
|
Model |
Capacity (t/h) |
Power (kW) |
Weight (kg) |
Dimensions (mm) |
|
J CP-5 |
5–6 |
5.25 |
578 |
1816 × 710 × 1352 |
|
J CP-10 |
7–10 |
8.8 |
765 |
2240 × 864 × 1574 |
|
J CP-20 |
15–20 |
12.6 |
935 |
2590 × 910 × 1620 |
|
J CP-30 |
25–30 |
22 |
1025 |
3100 × 1040 × 1780 |
Reference specifications only. Confirm the current model, motor arrangement, dimensions, and supply scope in the quotation. Actual throughput depends on grape condition and operating settings. Capacity refers to grapes processed, not finished juice output.
Choosing the Right Machine for Your Plant
Start with peak hourly intake rather than average daily production. Grapes often arrive within a limited harvest window, and the preparation section must handle that delivery pattern.
For example, processing 40 tonnes over eight operating hours requires an average intake of 5 tonnes per hour. Cleaning stops, uneven deliveries, and interruptions downstream can require additional capacity. Use the actual operating schedule when comparing models.
Before ordering, clarify:
-
Fruit characteristics: grape variety, berry size, ripeness, and proportion of loose berries.
-
Feed arrangement: manual loading, elevator, conveyor, or receiving hopper.
-
Discharge requirements: receiving height, transfer distance, and pump requirements.
-
Utilities: local voltage, frequency, and available electrical supply.
-
Construction: product-contact materials, roller material, seals, and cleaning access.
Confirm which accessories are included. A pump, control cabinet, support frame, or conveyor can change both the installation layout and total price.
Why Choose AGICO?
01
Customized Solutions
We tailor equipment configurations and processing solutions to your raw materials, product requirements, production capacity, and available space.
02
Single Machines to Complete Lines
Whether you need a standalone machine, an upgrade to an existing process, or a complete production line, we help you select and coordinate the right equipment.
03
Turnkey Project Support
From process planning and equipment selection to layout design, installation, commissioning, and operator training, we support your project through to production.
04
Process & Equipment Expertise
Our team helps you evaluate processing options and equipment combinations based on your product quality goals, operating needs, and production targets.
05
Quality Built for Daily Operation
We focus on manufacturing quality, practical operation, and maintenance needs to deliver equipment suited to everyday production.
06
Ongoing After-Sales Support
Our support continues after delivery, with technical guidance on equipment operation, routine maintenance, and troubleshooting to help your team keep production running smoothly.
Applications and Production-Line Integration
Grape Juice Processing
The grape destemmer crusher prepares grapes for subsequent juice extraction. Coordinate its throughput with the receiving tank and press so that crushed fruit does not accumulate unnecessarily between stages.
Preparation for Grape Juice Concentrate
Destemming and crushing can form part of the raw-material preparation section for concentrate production. Juice extraction, clarification, and evaporation require separate equipment.
Replacement and Capacity Expansion
A standalone unit can replace an existing destemmer crusher or increase preparation capacity. For retrofit projects, provide the available floor space, inlet and outlet heights, and details of the current transfer system.
For a wider equipment scope, see our grape juice production line.
Destemmer Crusher or Juice Press?
Sometimes, people are confused about destemmer crusher and juice press, they think both of the two equipment can make out juice, but these machines perform different jobs.
|
Equipment |
Main function |
Discharged material |
|
Grape destemmer crusher |
Removes stems and breaks berries |
Crushed fruit containing liquid and solids |
|
Grape juice press |
Separates liquid from prepared fruit |
Extracted juice and press residue |
Choose a destemmer crusher when the requirement is grape preparation. If the requirement is liquid extraction, a press is also needed. AGICO supplies juice belt press equipment, suitability should be assessed against the intended grape process.
Cleaning, Maintenance, and Service Planning
Remove retained fruit promptly after production and follow the machine’s cleaning instructions. Isolate the power before opening guards or accessing moving components.
Routine inspection should cover the screen, rollers, seals, drive components, and discharge path. Ask for a recommended spare-parts list before the harvest season, when an avoidable stoppage can disrupt the entire plant.
At quotation stage, agree on installation guidance, commissioning support, operator instruction, and spare-parts arrangements. Specify any material documentation or destination-market compliance requirements before placing the order.
Frequently Asked Questions
Q： Can this machine produce ready-to-drink grape juice?
A： No. It removes stems and crushes grapes. Extraction and subsequent juice treatment are separate operations.
Q： Can it process both red and white grapes?
A： Both can be considered, but berry size, skin condition, and the intended process affect equipment selection. Provide details of the varieties you plan to handle.
Q： Is a transfer pump included?
A： Check the quoted supply scope. Pump selection also depends on the transfer distance, elevation, and characteristics of the crushed fruit.
Q： How much does a grape destemmer crusher cost?
A： Price depends on capacity, construction, controls, and included accessories. Installation and delivery requirements also affect the total project cost.
Request a Machine Recommendation
Send us your grape variety, target hourly capacity, operating hours, power supply, and downstream equipment details. For an existing plant, include a layout or photographs of the installation area.
With this information, we can discuss a suitable grape destemmer crusher configuration and prepare a quotation for your processing requirements.
