Chilli Powder Grinding Machine

What is Chili Powder Grinding Machine?

Chilli powder grinding machine, also known as chilli powder pulverizer, is one of the common food processing machines. It is designed to process dry red pepper or chilli into chili powder by high-speed rotating blades or hammers. Generally speaking, chili powder grinding machine is used during the spice processing, it is used in food processing factories, seasoning and spice factories. Our chili powder gringding machine is one of the powder grinders AGICO offers.

Get a Free Quote!

If you just want a chilli powder grinding machine to pulverize your chili, you can trust us, we can customize chili powder grinding machine according to your production capacity, your goal mesh of the chilli, and so on. But if you have large scale production needs, just equipped with the automatic feeding and vibrating sieving system, cyclone collector, our chili powder grinding machine can be configured as a fully automatic chili powder processing line. It means that you can not only grind chili powder with a single chilli pulverizer machine, but also upgrade to a fully automatic chilli powder production line with the necessary automatic supporting system.

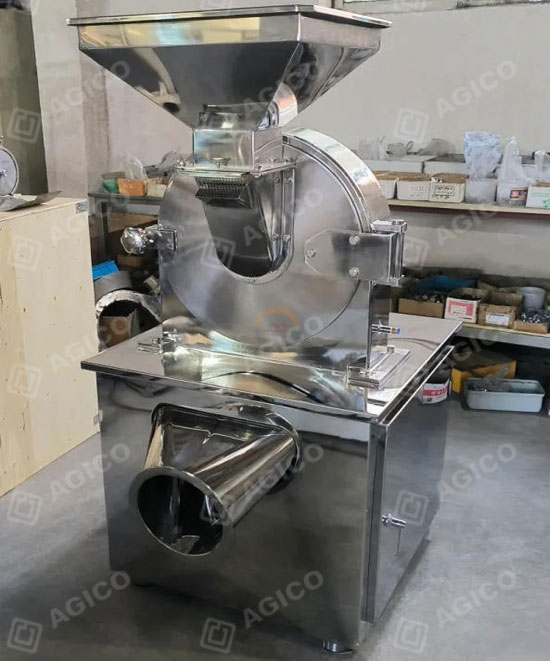

Chilli powder grinding machine

Powder grinder made by AGICO

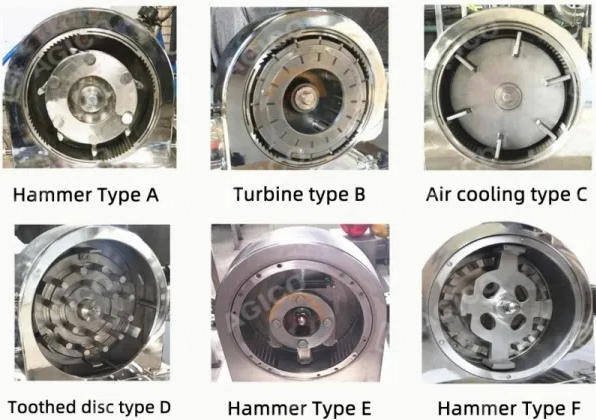

Chilli powder grinding machine configuration

AGICO chili pulverizer working

Customize Chili Pulverizer Now!

AGICO Chilli Powder Grinding Machine Features

• The chilli powder grinding machine utilizes the high-speed relative movement of the movable tootheddisk and the fixed toothed disk to crush the pulverized objects through the combined effects of toothimpact, friction and material impact.
• This chili powder machine is simple in structure, sturdy, stable in operation,and has good grinding effect.
• The crushed material can be directly discharged from the mill cavity of the main machine.
• The particle size can be obtained by replacing the mesh screen with different apertures.
• In addition, the chili powder grinding machine is all stainless steel. The inner walls of the casing are all machined to achieve a smooth surface, which has changed the rough and powder accumulation on the inner walls of the previous models, making the production of medicines, foods, and chemicals more conform with national standards and meeting GMP requirements.

Chilli powder pulverizer

Chili powder pulverizer

Get a Chilli Powder Solution!

Chili Powder Machine Parameter

Model	AGS18B/C	AGS20B/C	AGS30B/C	AGS40B/C	AGS50B/C	AGS60B/C
Capacity (KG)	5-20	50-100	50-200	100-400	200-500	200-800
Discharge fineness(Mesh)	20-120	20-120	20-120	20-120	20-120	20-120
Cutter diameter (mm)	150	200	300	350	500	550
Monitor rate (KW)	1.5	4.0	5.5	11.0	15.0	18.5
Dust removal power (KW)	0.55	0.75	1.1	1.5	2.2
Total Weight (KG)	60	140	220	440	560	620
Dust removal weight (KG)	110	230	310	560	680	760
Dimensions (mm)	450*350*950	600*500*1170	750*600*1370	800*700*1450	850*950*1550	900*1100*1750
Dust removal size (mm)	800*500*1200	1000*500*1400	1200*700*1850	1350*900*2000	1400*900*2150	1600*1100*2300

Customize Chilli Powder Grinding Machine

The chilli powder grinding machine or chili powder pulverizer of AGICO is generally driven by a high-speed motor, the main parts of the chili powder pulverizer is made of high quality stainless steel, which conforms to the standard of sanitation. The powder fineness of the chilli powder grinding machine can be flexibly adjustable by changing the sieve size. The most common scope of chili powder fineness ranges from 20 to 120 mesh. AGICO chilli powder grinding machine can produce chili powder from 50 kg/h to 800 kg/h according to different hardness of material and required fineness, so tell us your special requirements to customize the most suitable chilli powder grinding machine.
