Fruit Pulper Main Functions

A fruit pulper is an essential processing machine for fruit and vegetable production lines, designed to efficiently crush whole or cut fruits into smooth, refined pulp. Through a high-precision combination of screens and rotating blades, the fruit pulper separates edible pulp from skin, seeds, and fibrous residues, ensuring clean and consistent puree quality. Adjustable screen sizes allow flexible control of pulp fineness to meet different production requirements such as juices, jams, purees, beverages, and concentrated ingredients.

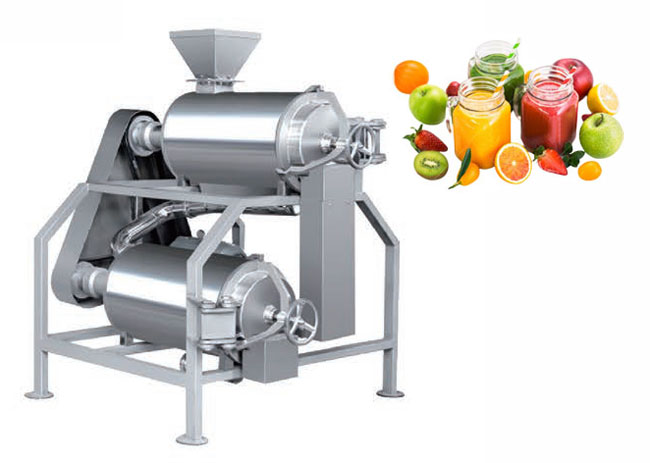

High speed fruit pulper

Send Inquiry Now!

AGICO fruit pulper series is engineered for small-scale workshops up to fully industrial production lines. These fruit pulp machines deliver high pulp yield, low waste, hygienic processing, and long-term operational stability, making them ideal for continuous commercial use.

With a compact, modular design, the fruit pulper supports both continuous and batch processing, and it integrates seamlessly with crushing, homogenizing, pasteurizing, and filling equipment during fruit juice production line.

Fruit pulper application

Send Inquiry Now!

AGICO fruit pulpers are suitable for a wide range of fruits such as mango, tomato, apple, pineapple, banana, papaya, strawberry, pear, peach, apricot, and some vegetables to make jam. Featuring high output efficiency, easy cleaning, and customizable configurations, our fruit pulp machines are designed to meet diverse production capacity needs in juice factories, jam plants, baby food processing lines, and frozen puree facilities. We welcome global customers to contact us for tailored solutions and competitive quotations.

Common Types of Fruit Pulpers

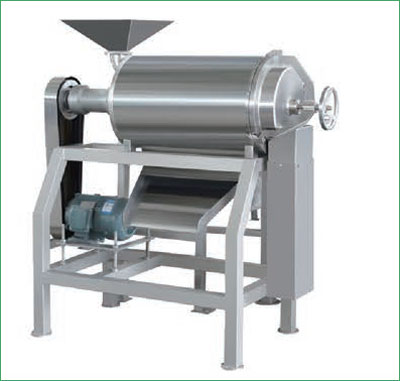

Single Stage Pulper

It is suitable for the separation of pulp and residue from most fruits, such as crushed and pre-cooked pome and berries.

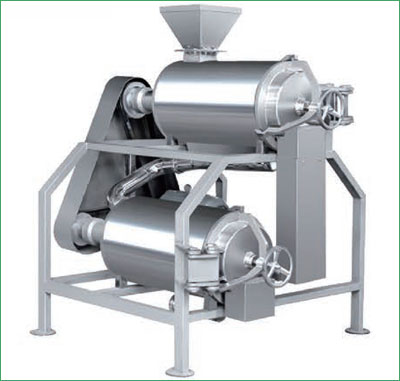

Double Stage Pulper

Two-step ultra-fine pulping for increased pulp yield and improved product consistency. The first stage is coarse beating and the second is fine beating. The mesh of two screens can be selected according to the material requirements.

Destoner and Pulper Combination

It is suitable to design for fruits like mango and tomato that require automatic removal of seeds, core and skins prior to pulping. The pulp, residue and core, skin are automatically separated. It combines single stage fruit pulper and double stage fruit pulper, first step is to remove nucleus and peel, and the second step is to separate the pulp and residue.

Pulper and Crusher Integrated Machine

Suitable for tough or fibrous fruits, combining pre-crushing and pulping in one unit to improve processing efficiency. It is suitable for the separation of crushed or softened berry or pome pulp in large fruit juice and jam factories. The equipment has a reasonable structure, high efficiency, high pulp yield, fast separation speed, large production capacity and good stability.


Send Inquiry Now!

Single Stage Fruit Pulper Technical Parameter

Double Stage Fruit Pulper Technical Parameter

High Speed Fruit Pulper Technical Parameter

Advantages and Features of AGICO Fruit Pulper

• High Pulp Yield, Low Residue

  Optimized rotor and screen design maximizes fruit pulp recovery. The pulp yield reaches industry-leading levels, reducing raw material loss and increasing product value.

• Adjustable Screens, Controlled Fineness

  Multiple screen apertures are available (0.5 mm–5.0 mm), meeting different fineness requirements for juice, puree, and coarse pulp processing.

• Full Stainless-Steel Construction

  All contact parts of our fruit pulper are made of 304 or 316 food grade stainless steel, ensuring food safety, corrosion resistance, and ease of cleaning and sanitization.

• Easy Cleaning

  The fruit pulp machine structure supports quick disassembly and is compatible with CIP cleaning, reducing downtime and meeting GMP and food safety standards.

• Modular Design, Easy to Expand

  Compatible with crushers, destoners, homogenizers, pasteurizers, filling machines, and other equipment, allowing seamless integration into a complete production line.

• Energy-Efficient and Low Maintenance

  Equipped with a high-efficiency motor and optimized transmission system, the fruit pulp machine consumes less energy. Key components are easy to replace, minimizing maintenance costs.

• Multiple Sizes and Capacities Available

  From small pilot models about tens of kilograms per hour to large industrial units up to several tons per hour, our fruit pulp machine covers a full range of production needs. We support customized service.

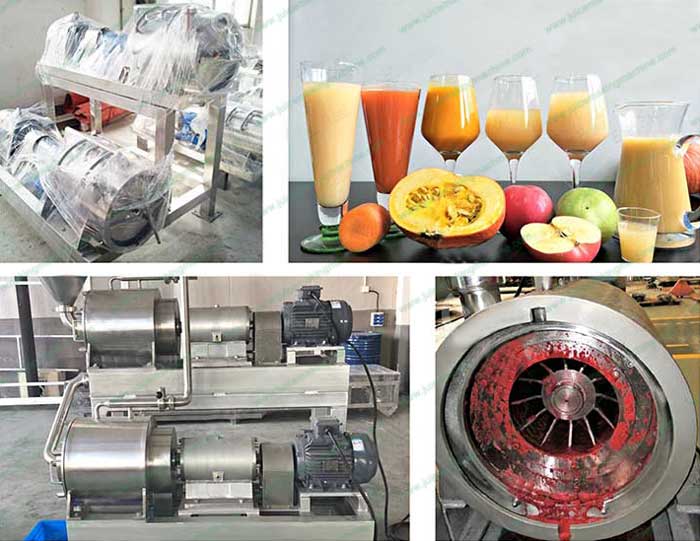

AGICO fruit pulper working

Send Inquiry Now!

Fruit Pulper Components

The fruit pulper is composed of a feeding inlet, crushing rotor, screen cylinder, pulp collection trough, residue outlet, transmission system, and control unit. After the fruit enters the pulp machine, the rotor performs high-speed shearing to break down the material, while the screen separates the pulp from the skins, seeds, and residues. The extracted pulp flows through the collection trough and is discharged to the next processing stage, such as homogenizing, heating, or cooling. Key components feature a quick-release structure, allowing fast handling of material blockages and facilitating routine cleaning and sanitation.

Fruit pulper structure

Send Inquiry Now!

Fruit Pulper Operation and Safety Guide

Start-Up Procedure

Before powering on the fruit pulper, carefully inspect all rotating components to ensure that every connection is secure and reliable. Confirm that the motor rotation matches the direction indicated on the label. Check for any loose screws and verify that the door cover bolts are fully tightened. Once all parts of the fruit pulper are confirmed to be in good condition, start the fruit pulp machine and begin feeding the material for pulping.

Shutdown Procedure

After switching off the motor, release the main brake. Do not open the door cover while the rotor is still rotating. Only open the door by turning the handwheel counterclockwise once the rotor has come to a complete stop.

Lubrication

Regularly lubricate the bearings of the fruit pulp machine to ensure smooth operation and to extend their service life.

Cleaning and Maintenance

At the end of each shift, thoroughly clean and maintain the pulp machine to prevent leftover materials from fermenting inside. During cleaning, open the door, remove the filter frame, and then disassemble the rotor components for proper washing.

Looking for fruit pulper or fruit pulp machine solutions? Tell me your raw fruits like apple, tomato, mango etc. and the production capacity do you want the fruit pulper to deal with, I will give you the most suitable fruit pulper for your business, please contact us to get the free consultation and the quote for your fruit pulper!
