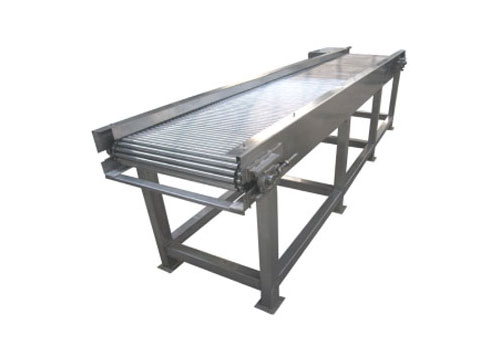

fruit sorting machine

fruit sorting machinefruit sorting machine with rolling rod

Fruit sorting plays a vital role in fruit juice pre-treatment. AGICO fruit sorting machine is mainly designed for conveying, sorting and grading of ball-shaped fruits, such as apples, oranges, pears, apricots, peaches, lemons, dragon fruits, pomegranates, etc. The fruits selected by our fruit sorters are more quality-proved, which can guarantee the top quality of fruit juice.

How does the fruit sorting machine work?

The stainless steel shafts of the fruit sorter machine roll themselves to transport fruits, and the fruits on the shafts can evenly rotate so that the working staffs can easily pick out fruits of low or inferior quality. The waste material will finally be conveyed into the receiving tank.

fruit sorting machine apple
fruit select machine apple

Send Inquiry Now!

Fruit Sorting Machine Features

  • Adopting high quality stainless steel shafts and stepless speed adjusting device.
  • Our sorting sorters are made of stainless steel folding plate of 1.5mm.
  • The support and beam are welded by stainless steel tube.
  • The transmission shaft and chain wheel are made of stainless steel 1Cr13.
  • The smooth surface of the stainless steel shafts pose no damage to the surface of fruits.
  • Unique motor guarding shield and grounding type oil guiding pipe provide a more sanitary condition for the sorting and grading of fruits.

Fruit Sorting Machine Technical Parameters

Production Capacity 5 tons/h
Transmission Width 700 mm
Transmission Length 4000 mm
Power 1.1 kw
Size 4000*850*1100mm

pomegranate sorting processing

Different Types of Fruit Sorting Machine in AGICO

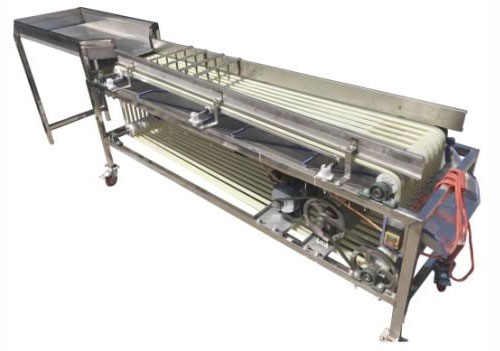

Rail Type Sorting Machine

Rail Type Sorting Machine This rail type sorting equipment grades fruits and vegetables using multiple V-shaped rails. The rail spacing is adjustable, allowing it to sort a variety of fruits and vegetables such as jujubes, garlic, oranges, pomelos, loquats, oranges, hawthorns, sea buckthorn, kumquats, persimmons, lychees, longans, and more. The grading is uniform, causes no damage to the produce, maintains small grading differences, and operates with high efficiency.
rail type sorting machine
Overall dimension Power Capacity
2100*600*80mm 0.55kw 100-1000kg/h

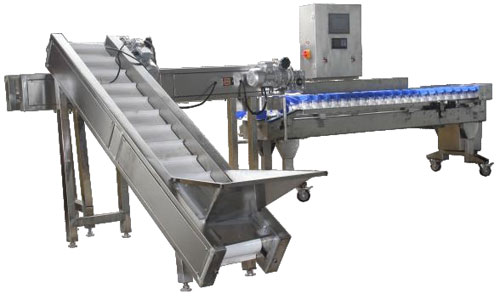

Weight Sorting Machine

Weight sorting machines can be classified into box-type and belt-type based on their weighing structure. After weighing the materials, the machine automatically conveys them to the corresponding outlets according to preset sorting standards, achieving automatic grading.
weight sorting machine
Overall dimension Power Capacity
780*710*940mm 1.5kw 100-3000kg/h

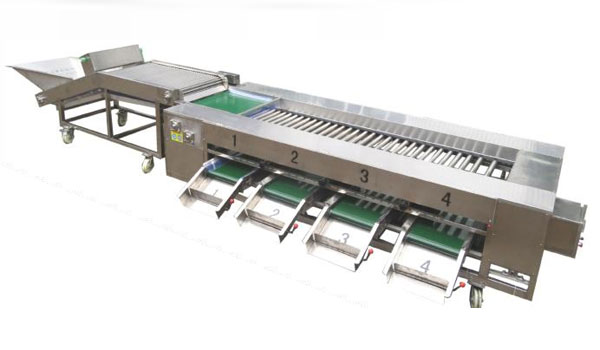

Roller-Type Sorting Machine

The grading of fruits and vegetables is achieved through varying gaps between rollers. As the rollers rotate, sorting becomes more accurate and efficient, while the materials are conveyed along. This machine features low noise, simple structure, easy maintenance, low energy consumption, and low operating costs. The grading sizes and number of grades can be customized.
roller type sorting machine
Overall dimension Power Capacity
4000*900*1000mm 0.75kw 30-90kg/h

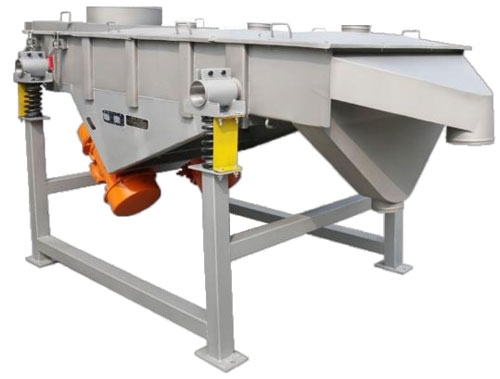

Vibrating Sieve

Depending on the structure, vibrating sieves can be linear or rotary. Through vibration, materials pass evenly through multiple layers of screens, achieving separation by size or removal of impurities.
vibrate sieve
Overall dimension Power Sorting range
3000*1200*1200mm 0.5kw 2-4 grades

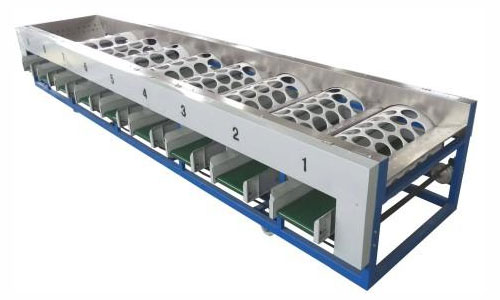

Drum-Type Sorting Machine

Grading is achieved based on the hole size or grid spacing on the drum. Depending on the number of drums, it can be a multi-drum sorter (composed of multiple drums, each with different hole sizes) or a single-drum sorter (with different hole sizes on the same drum). The drum’s tilt angle and rotation speed are adjustable, and the grading hole size can be customized according to requirements. This equipment is suitable for apples, cherry tomatoes, garlic, jujubes, hawthorns, persimmons, plums, and other fruits and vegetables. It features high efficiency, no damage to produce, stable operation, and is energy-saving and environmentally friendly.
drum type sorting machine
Overall dimension Power Capacity Sorting size
2000*1100*1500mm 0.75/1.1kw 500-3000kg/h customized

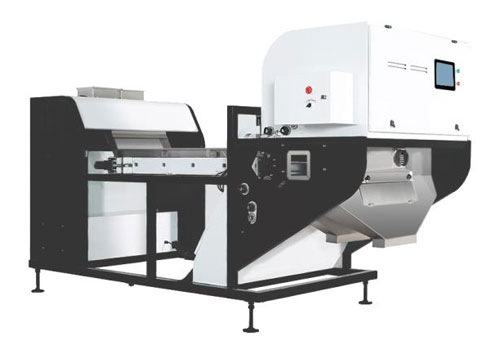

Color Sorting Machine

Belt-type color sorting machines use machine vision to identify the color of fruits and vegetables and classify them according to preset standards. Materials are transported smoothly on a conveyor belt, preventing bouncing or collisions, making it ideal for color recognition. It offers high recognition accuracy, precise sorting, and easy operation.
color sorting machine
Overall dimension Power Capacity Number of execution units
3400*1300*1850mm 2.5kw 1-8T 64-512
