Small Freeze Dryer

Small Freeze Dryer Introduction

A small freeze dryer is a type of equipment specially used for low-temperature vacuum dehydration. It generally refers to freeze dryers with smaller volume, which may be household models, laboratory models, or small-scale commercial models. In other words, freeze dryer for home use is one type of small freeze dryer. Small freeze dryers are usually used for home use, but they can also be suitable for laboratories or small commercial purposes. The size and processing capacity are smaller than industrial freeze dryers, but they are suitable for small businesses or households to freeze dry vegetables and fruits. Besides small freeze dryer, we can also offer mesh belt dryer and fruit drying oven.
A small freeze dryer works by rapidly freezing the raw materials and letting ice crystals sublimate directly into water vapor under vacuum conditions, thereby obtaining dried products. Compared with traditional drying methods, a small freeze dryer can preserve the nutrients, taste, and appearance of food, medicine, or plants to the greatest extent.
In the market, small freeze dryer for sale has become a hot keyword. More and more households and small businesses choose to purchase this kind of equipment for homemade food or small-scale trial production.



small freeze dryer

Send Inquiry Now!

Why Choose AGICO Small Freeze Dryer?

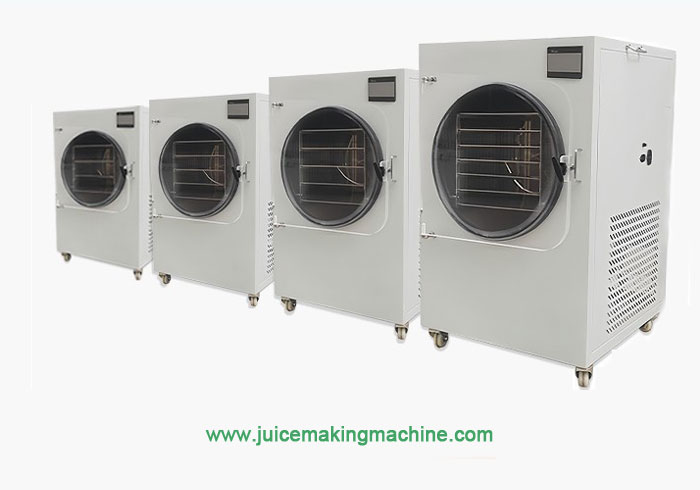

AGICO small freeze dryer adopts imported configuration, with stable and reliable performance; it features beautiful appearance, small size, light weight, and easy operation. Our small freeze dryer has in-situ freeze-drying function, making it convenient to operate and eliminating the cumbersome manual operation of traditional small freeze dryers. The upgraded second-generation version uses a PLC control system for intelligent control, with programmable heating and temperature control, and the ability to view the freeze-drying curve, making it easy for users to observe the process.
AGICO small freeze dryers are widely used in fruits, vegetables, meat, Chinese medicinal materials, health products, and pet food. According to your raw materials and processing capacity per batch, we will help you choose the appropriate modelof small freeze dryer.

  • High Nutrition Retention: Freeze-drying is carried out in an ultra-low temperature environment, with only 3% nutrient loss. AGICO small freeze dryer keeps the original color, flavor, and nutrients of food without shrinkage or hardening. Freeze-dried vegetables, fruits, meat, and cheese remain fresh in appearance.
  • Wide Applicability: Suitable for freeze-drying fruits, vegetables, meat, seafood, pet food, coffee, medicine, flowers, etc. Multiple configurations available.
  • Compact and Convenient: Small size, less space, flexible use. Suitable for home kitchens, laboratories, or small factories. Imported key parts, in-situ freeze-drying, reduced manual operation. Future versions will support one-touch operation.
  • Long-term Preservation: Freeze-dried food has low moisture and can be stored at room temperature for a long time without deterioration. Ideal for emergency food, outdoor food, or high-value products.
  • Reliable Quality: International advanced freeze-drying technology. Adjustable temperature, programmable process. Transparent organic glass door for clear observation.
  • Energy Efficiency: Low energy consumption, cost-saving. Stainless steel trays are durable and easy to clean. Some models use PLC control for one-button start and fully automatic control.
  • Perfect After-sales Service: Installation guidance, training, spare parts supply. Standard and customized products available. Unique patented products.
  • Global Export Experience: Popular in Europe, America, Southeast Asia, Middle East, etc.
small freeze dryer details

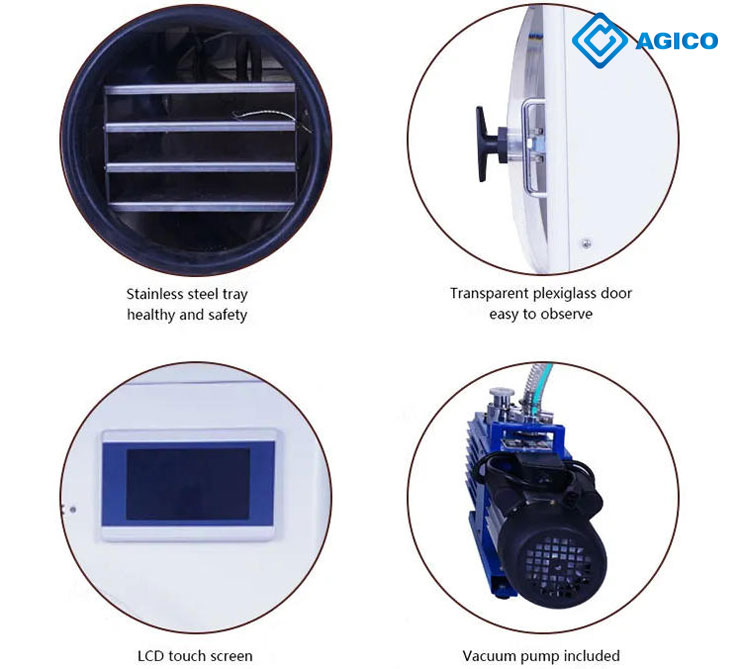

Component of Small Freeze Dryer
component of small freeze dryer

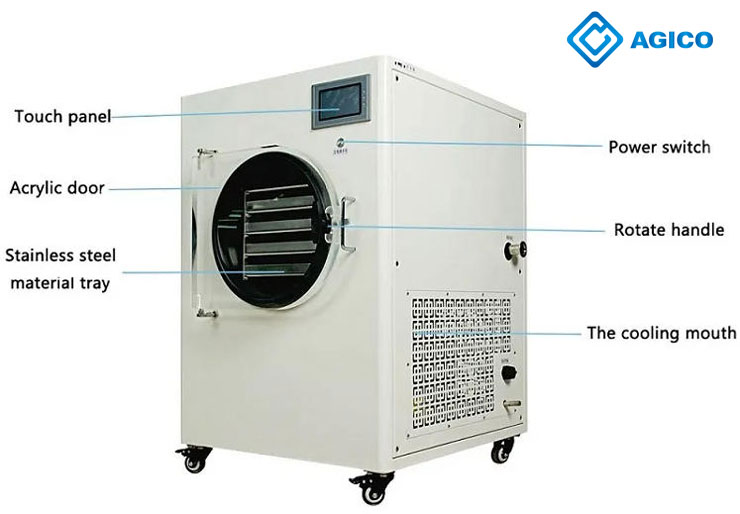

Details of Small Freeze Dryer

Application of Small Freeze Dryer

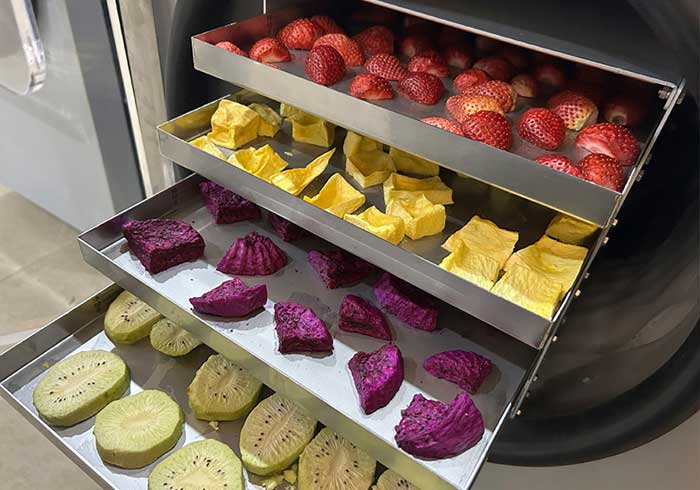

A small freeze dryer can be used for homemade freeze-dried fruits, snacks, pet food, and also for small businesses to develop high-value-added freeze-dried products such as freeze-dried strawberries and freeze-dried coffee. Laboratories or research institutes can also use small freeze dryers for experiments and small-scale trial production. In addition, small freeze dryers are favored by outdoor/emergency food enthusiasts because freeze-dried food can be stored for a long time without deterioration and is easy to carry.
small freeze dryer application

Small Freeze Dryer Specifications

Type Small Medium Large
Model AG-SFD1 AG-SFD4 AG-SFD6
Max. capacity 1-2kg (2lb-4lb) 4-6kg (8lb-13lb) 6-8kg (13lb-17lb)
Temperature -40ºC -40ºC -40ºC
Ultimate vacuum 10pa 10pa 10pa
Shelf dimensions 145*275mm 195*425mm 345*425mm
Number of shelves 3 4 4
Shelf area 0.1m² 0.4m² 0.6m²
Shelf spacing 45 45 70
Rated power 750w 1100w 2300w
Power supply 110-220v / 50hz-60hz
Unit dimensions 400*500*700mm 550*800*850mm 720*710*1135mm
Weight 50kg 162kg 220kg
Note: This table is according to different processing capacity of small freeze dryer can deal with.
Model AG-SFD-1 AG-SFD-4 AG-SFD-6 AG-SFD-1A AG-SFD-4A AG-SFD-6A
Shelf Area 0.1㎡ 0.4㎡ 0.6㎡ 0.1㎡ 0.4㎡ 0.6㎡
Condenser Temperature -40℃ -70℃
Vacuum Degree ≤10Pa
Capacity (kg/batch) 1 4 6 1 4 6
Shelf Spacing (mm) 45 45 70 45 45 70
Heating Method Electric Heating
Power Supply 220V; 50HZ
Power (W) 750 1100 2300 1700 2500 3300
Tray Size (W*L) 145*275mm 195*425mm 345*425mm 145*275mm 195*425mm 345*425mm
No. of Shelves 3 4 4 3 4 4
Unit Dimensions (W*D*H) 40*55*70cm 55*80*85cm 72*71*113cm 55*62*85cm 60*100*98cm 70*100*130cm
Net Weight 50kg 162kg 220kg 75kg 190kg 260kg
Packing Weight 95kg 193kg 250kg 120kg 245kg 295kg
Note: This table is according to different shelf area of small freeze dryer.
Applications include the following
  • Vegetables: green vegetables, scallions, carrots, garlic, onions, ginger, peppers, yam, spinach, cauliflower, peas, mushrooms, etc.
  • Fruits: blueberries, durian, apples, peaches, pears, apricots, jujube, strawberries, bananas, pineapple, cantaloupe, lychee, longan, etc.
  • Meat: duck, goose, beef, lamb, pork, chicken, snake, turtle, etc.
  • Seafood: sea cucumber, abalone, fish, shrimp, crab meat, squid, silverfish, etc.
  • Convenience food: instant noodle ingredients, beef noodle toppings, meatballs, soup bases, pet feed, etc.
  • Instant drinks: coffee, milk, soy milk, fruit juice, royal jelly, yogurt cubes, etc.
  • Seasonings: various cooking seasonings.
  • Herbal medicine and health products: cordyceps, placenta, deer antler, ants, earthworms, scorpions, ginseng, codonopsis, angelica, rhubarb, various health foods.
  • Others: household use, bird/fish feed, pet food, new product R&D, etc.

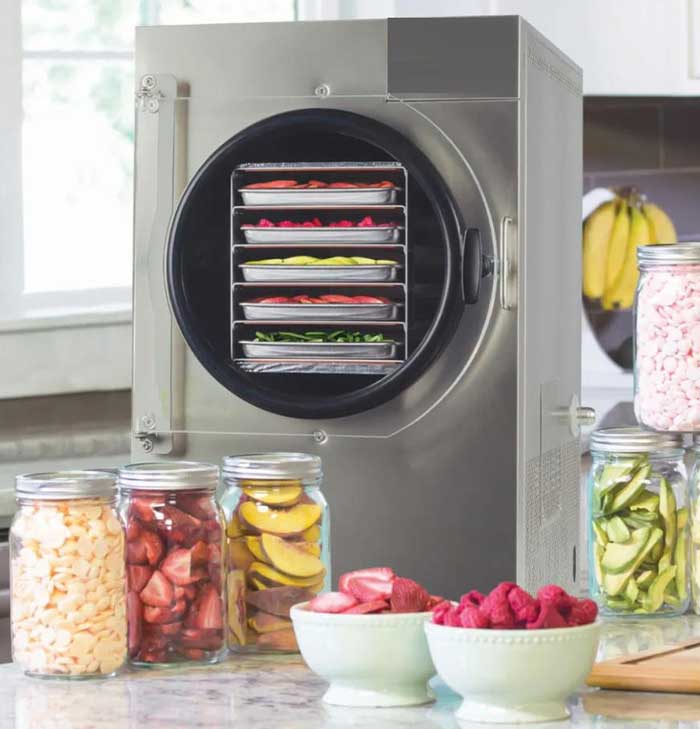

Small Freeze Dryer for Sale Recommendation

If you are looking for small freeze dryer for sale, we provide different models of small freeze dryers to meet your needs:
  1. Capacity: 500g – 10kg per batch.
  2. Temperature range: -50℃ to -80℃.
  3. Operation: Fully automatic / semi-automatic optional.
  4. Configuration: Vacuum system, condenser, intelligent touch screen control.
We provide factory direct sale, with reasonable price and after-sales guarantee, helping you quickly start your freeze-dried food journey.
small freeze dryer for sale


Advantages of Home Freeze Dryer

The Home freeze dryer is specially designed for household users.
  • Easy to operate: High degree of automation, one-touch start.
  • Safe and eco-friendly: Made with food-grade stainless steel chamber, meeting home use standards.
  • Multiple uses: Can be used to make healthy snacks, pet food, health supplements.
For people who like DIY food or pursue a healthy diet, a small home freeze dryer is the ideal choice. It not only saves long-term purchasing costs but also ensures food ingredients are safe and controllable.



AGICO has nearly 20 years of experience in the production and application of freeze dryers and refrigeration equipment. We are a high-tech enterprise integrating R&D, manufacturing, and sales. Our main products include small freeze dryers, commercial freeze dryers, and food freeze dryers. In addition, we have deep research in fruit and vegetable washing machines, juicers, refining machines, peeling machines, and other food machinery.
We are committed to high-quality freeze dryer R&D and manufacturing, with a team of refrigeration and freeze-drying experts. We provide complete freeze-drying solutions and turnkey projects, along with professional, attentive, and timely after-sales service.
If you are searching for small freeze dryer for sale or want to buy a small home freeze dryer, please contact us to get detailed parameters and quotations.
Contact us now for the latest small freeze dryer price and technical information!
