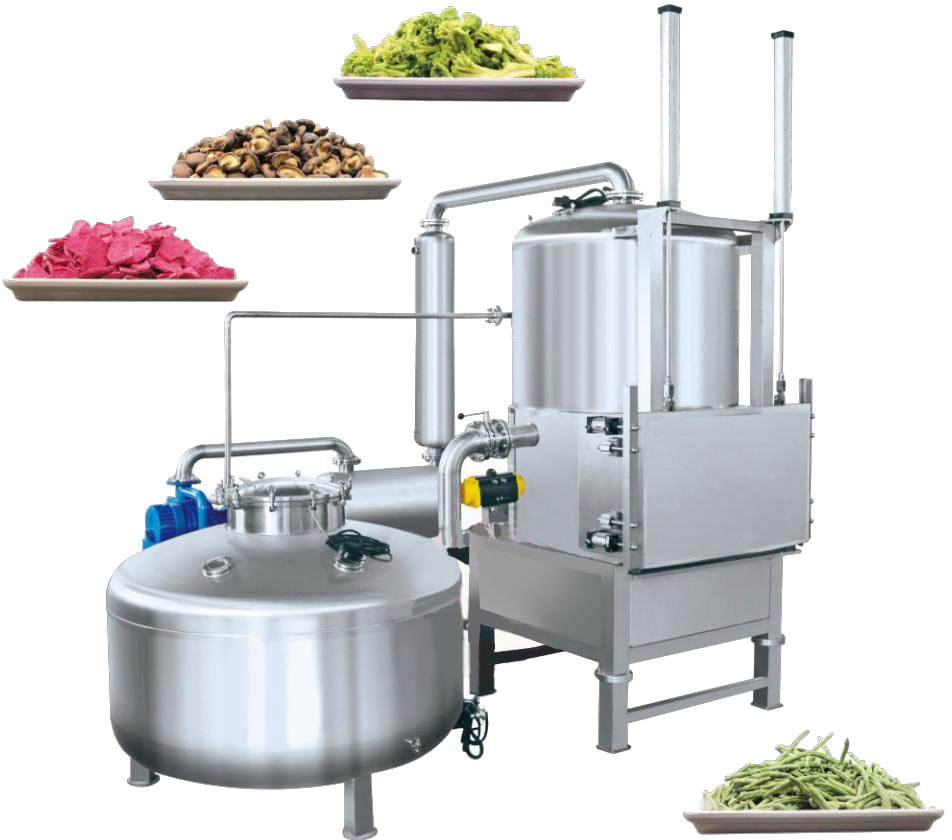

A vacuum fryer machine is a food frying equipment that performs low-temperature frying in a vacuum environment. The key difference between a vacuum fryer machine and common continuous fryer machines or general batch fryer machines lies in the fact that it conducts frying within a vacuum chamber. The frying temperature of the vacuum fryer machine is generally between 80 and 120℃, which can effectively preserve the color, taste, nutrients, and aroma of the food.
Vacuum fryer machines are widely used for the production of high-value-added products such as banana slices, apple slices, and carrot slices and so on. Therefore, the vacuum fryer machine price is relatively higher than that of common batch fryers, but it is almost similar to continuous fryer machines. If you need to produce relatively healthier food products like fruit slices or vegetable slices, a vacuum fryer machine would be your ideal choice.
Vacuum frying removes moisture and air, creating a nearly vacuum state within the frying chamber. It is used to process foods that are sensitive to high temperatures and are prone to burning during conventional deep frying. Multiple studies have shown that due to the lower frying temperature in vacuum fryer machine, the content of carcinogen acrylamide can be reduced, and at the same time, the oil content of the products is also lower. Generally speaking, vacuum fryer contains continous vacuum fryer machine and batch vacuum fryer machine. In Southeast Asian countries such as Thailand, China, the Philippines, and Indonesia, batch vacuum fryer machines are widely used by small and medium-sized enterprises in the production of fruit slices. For larger-scale production, continuous vacuum fryer machine can be adopted.
Vacuum fryer machine application
Comparison of Vacuum Fryer Machine and Continuous Fryer machine and Batch Fryer Machine
Fryer Machine
Vacuum Fryer
Continuous Fryer
Batch Fryer
Working Methods
Vacuum low temperature
Automatic continuous frying
Batch frying
Frying Temperature
80–120℃
160–180℃
160–180℃
Application
Fruit and vegetable slices
Chips, crisps, meat etc.
Small batch chips, nuts, etc.
Output
Low
High
Middle and low
Cost
High
High
Low
Automation
Medium
High
Low
Oil Quality
Better
Good
Good
Typical Users
Health food processing plants
Large food factories
Small producers / restaurants
AGICO Vacuum Fryer Machine Characteristics
The heating, frying, oil storage, de-oiling, dewatering and oil filtration are designed to be done continuously under vacuum, so that the oil content of the product is low. The product is under vacuum, and the food processing under this relatively oxygen-free condition can reduce or even eliminate the harm caused by oxidation (such as fatty acid decay, enzymatic browning and other oxidative deterioration). In the negative pressure state, using oil as the heat transfer medium, the water inside the food (free water and part of the combined water) will evaporate rapidly and spray out, making the slices form a loose and porous structure.
Automatic control of temperature and pressure (vacuum), no overheating, no overpressure, to ensure product quality and safe production.
De-oiling adopts frequency conversion speed control, suitable for all products with low and high oil content.
The oil-water separation system can separate the evaporated water and oil, reduce the pollution of water circulation, improve the repeated use of water and reduce the loss of oil.
Oil filtration system, upper and lower oil tanks, double chamber heating system, separate control of heating, circulating filter oil when frying, so that the oil is always clean, and reduce the waste of oil.
The machine is made of stainless steel, with high efficiency, stable performance, easy to install and use.
Our certifications
AGICO Vacuum Fryer Machine Details

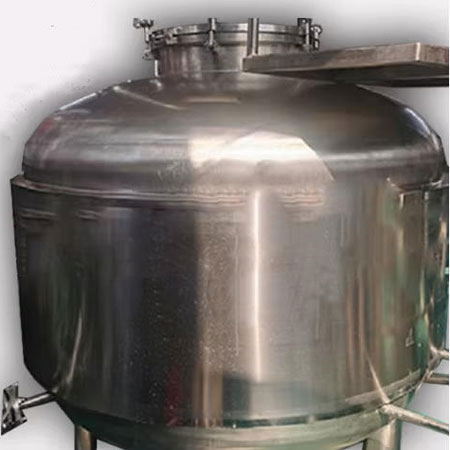

Vacuum Oil Tank
The vacuum oil tank is equipped with a quick-opening 304 stainless steel feeding port for easy cleaning of residual oil inside the tank. To prevent product residues from mixing with the oil during frying, a removable stainless steel filter screen is installed below the feeding port.Send Inquiry Now!

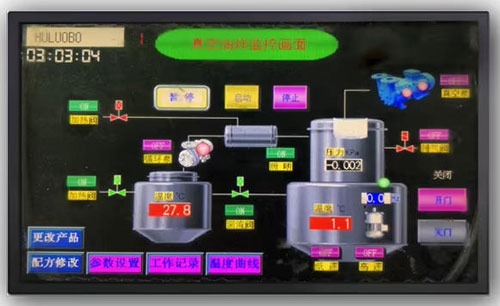

Easy-to-Operate Control Module
The control cabinet is made of food-grade 304 stainless steel and features a PLC control system that provides centralized and intuitive operation. It can be customized according to different voltage requirements.
Safety features include an emergency stop button, main leakage protection switch, over-temperature alarm, and automatic power-off with alarm in case of sensor failure — ensuring safe and reliable operation. Send Inquiry Now!

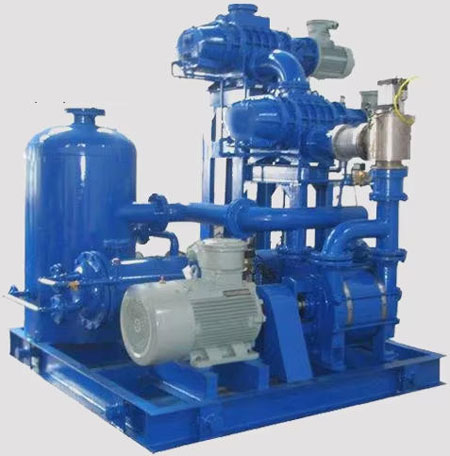

High Vacuum Unit
The vacuum system adopts a Roots–water ring vacuum unit, using a water ring pump as the fore pump. This design overcomes the disadvantages of a single water ring pump, such as poor ultimate pressure and low pumping speed under constant pressure, while retaining the Roots pump’s advantages of fast operation and high pumping speed. It is easy to operate, simple to install, and ensures smooth operation. Send Inquiry Now!
Automatic Vacuum Chamber Door System
The automatic door system of the vacuum chamber is driven by six cylinders, enabling the door to move outward and lift for opening. This design completely eliminates the need for labor-intensive and inefficient manual door operation. Send Inquiry Now!
Vacuum Fryer Machine Specifications
Model
AGV300
AGV500
AGV800
AGV1000
AGV1200
Baskets Number
2
2
2
2
2
Working Vacuum Degree (Mpa)
-0.092～-0.098
-0.092～-0.098
-0.092～-0.098
-0.092～-0.098
-0.092～-0.098
Working Temperature (°C)
80–120
80–120
80–120
80–120
80–120
Vacuum Pump Power (KW)
5.5
11/7.5
11
11+3/11
15+4/15
Heating Method
Electric/Steam
Steam
Steam
Steam
Steam
Basket Size (mm)
Φ300×200
Φ500×440
Φ760×560
Φ960×560
Φ1200×560
Capacity (kg, take French fries for example)
5–6 kg
30–50 kg
80–100 kg
160–200 kg
260–300 kg
Total Installation Power (KW)
31/18
21/14
21/14
25/18
28/22
Size (mm)
1600×2000×2000
2300×2100×2500
3000×3000×3090
3400×3400×3230
3930×3670×3720
Vacuum Fryer Machine Price
The vacuum fryer machines price varies depending on the model size, capacity and configuration.
The main influencing factors include:
Production capacity (e.g., 10 kg/batch, 50 kg/batch, 100 kg/batch, etc.).
Automation level (manual, semi-automatic or fully automatic).
Heating type (electric heating, gas heating or steam heating).
Material quality and control system.
Generally, the price of a small vacuum fryer machine is approximately between $5,000 and $10,000, while the price of large industrial vacuum fryer ranges from $20,000 to $80,000 or even higher.
In fact, we can provide customized solutions on vacuum fryer machines based on your production needs.
AGICO has over 20 years of experience in vacuum frying technology. We offer one-stop solution of vacuum fryer machine like design, manufacturing, installation, and training. Our vacuum fyre machine has energy-efficient system with reliable temperature and vacuum control. What’s more, we have global after-sales service and spare parts supply. So if you are looking for fryer machine, no matter batch fryer, continuous fryer or vacuum fryer, AGICO can be your good choice. Welcome to contact us anytime, to begin your fryer machine industry now!
